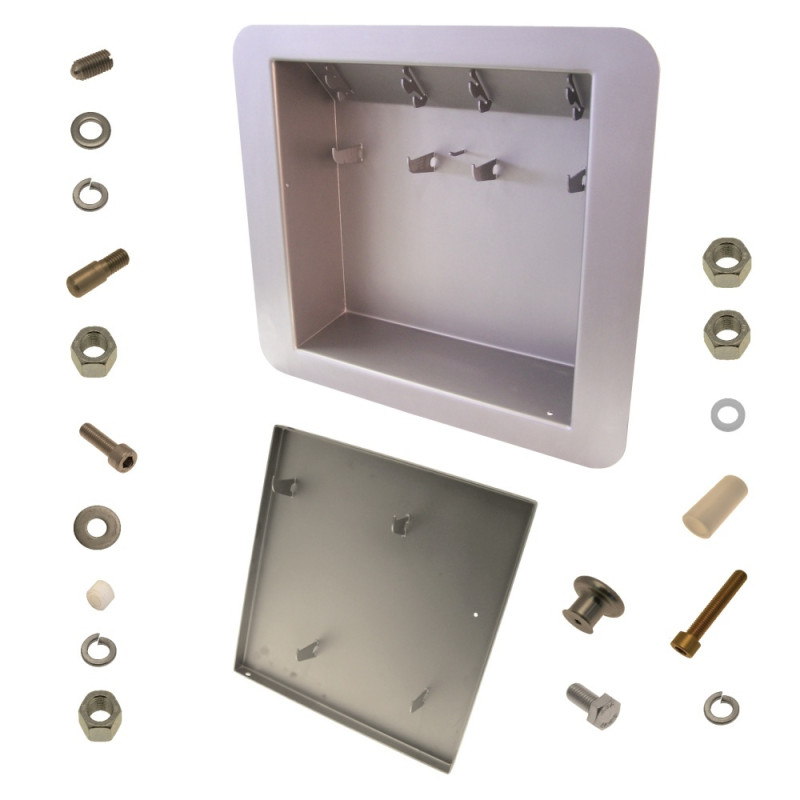

Hopper Exploded View for Ruhle SR2
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 103579 | Hopper | SR 2 Turbo | 1 |
 |
2 | 105968 | Pressure piece | 03011-12 | 1 |
 |
3 | F20258 | Washer | DIN125 A 6,4 | 1 |
 |
4 | F24031 | Spring lock washer | DIN127 B 6 | 2 |
 |
5 | F21450 | Bolt | Ø 10 x 30 | 3 |
 |
6 | F20203 | Hexagonal nut | DIN934 M 6 | 1 |
 |
7 | F20130 | Cylinder head screw | DIN912 M 6 x 20 | 1 |
 |
8 | F26600 | Washer | Ø 8,5 x Ø 20 x 2 | 3 |
 |
9 | 105969 | Bushing | Ø 7 x Ø 12 x 8 | 1 |
|
10 | F21260 | Spring lock washer | DIN127 B 8 | 3 |
|
11 | F20259 | Hexagonal nut | DIN934 M 8 | 3 |
 |
12 | 103580 | door | SR 2 Turbo | 1 |
 |
13 | F26821 | handle | Ø 39 x 30 | 1 |
 |
14 | F26033 | Hexagonal Bolt | DIN933 M 6 x 20 | 1 |
|
15 | F24031 | Spring lock washer | DIN127 B 6 | 1 |
 |
16 | F240372 | Cylinder head screw | M10 x 60 - LH | 2 |
 |
17 | F26716 | Bushing | Ø 11 x Ø 25 x 50 | 2 |
 |
18 | F21307 | Ring | Ø 10,2 x Ø 19 x 2 | 2 |
|
19 | F240499 | Hexagonal nut | DIN439 M 10 LH | 2 |
|
20 | F240501 | Hexagonal nut | DIN934 M 10 LH | 2 |
