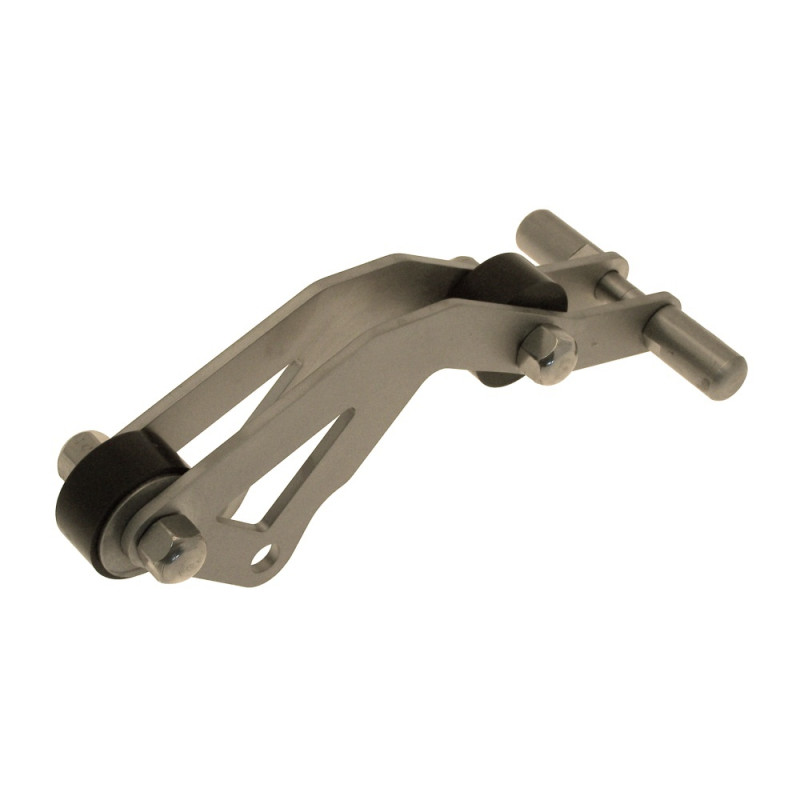

Lever Exploded View 2 IR56 Injector
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 105664 | plate / sheet | 229 x 132 x 5 | 2 |
 |
2 | 105666 | Shaft | Ø 20 x 57,5 | 2 |
 |
3 | F20930 | Threaded pin | DIN551 M 8 x 30 | 1 |
 |
4 | F41724b | Ring | Ø 12,2 x Ø 20 x 2 | 2 |
 |
5 | F20812 | Cap nut | DIN917 M 12 | 4 |
 |
6 | 105570 | Rubber pad | Ø 12 x Ø 45 x 20 | 2 |
 |
7 | 105972 | Disc | Ø 12,1 x Ø 40 x 2 | 2 |
 |
8 | 105971 | bolt | Ø 12 x 53 | 2 |
