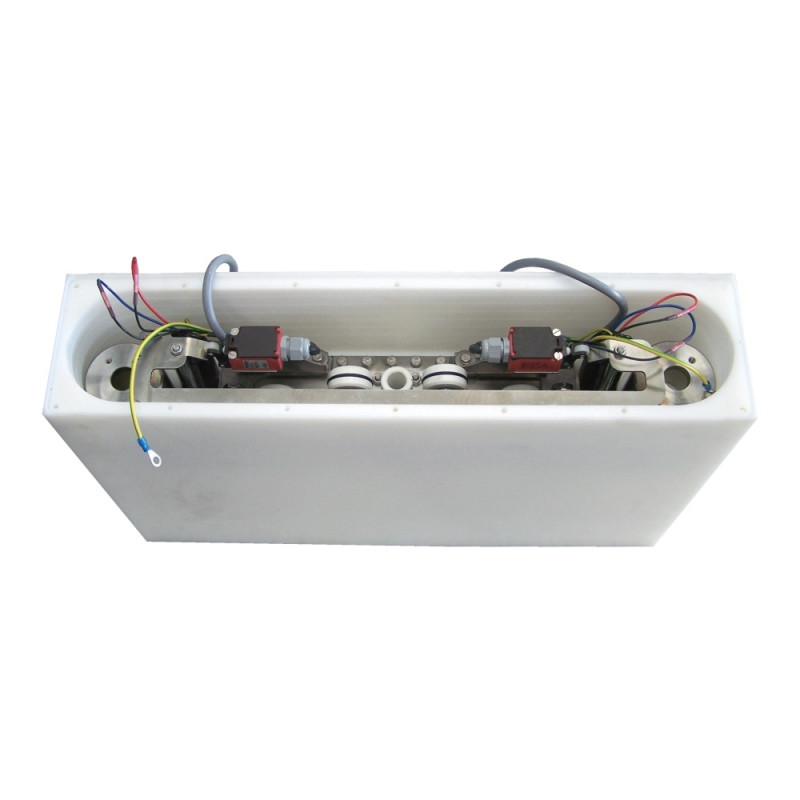

Block Exploded View Ruhle IR56 105885

Type: 105885
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1518

* Block Exploded View IR 56 Facelift:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Block Exploded View Ruhle IR56 105885

Type: 105885
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1518

* Block Exploded View IR 56 Facelift:
-- 101102 Block
--F443747 Switch unit
--F443746 Switch unit
-- F240284 plate / sheet
--F20258 Washer
--F24031 Spring lock washer
--F21047 Hexagonal bolt
--F21035 Disc
--F24522 Hexagonal bolt
--F29178 Bracket
-- F29177 Bracket
-- F25987 Cylinder head screw
--F25303 Cable
--F25303 Cable
--F29040 Limit switch
-- F20948 Cable gland

Block Exploded View for ruhle injector IR56

Pos No.	Part No.	Description	Add Info	Required
1	101102	Block	IR 28/56	1
2	F443747	Switch unit	IR 28/56	1
3	F443746	Switch unit	IR 28/56	1
4	F240284	plate / sheet	460 x 63,5 x 2,5	1
5	F20258	Washer	DIN125 A 6,4	1
6	F24031	Spring lock washer	DIN127 B 6	9
7	F21047	Hexagonal bolt	DIN933 M 6 x 12	1
8	F21035	Disc	Ø 6,5 x Ø 20 x 2	8
9	F24522	Hexagonal bolt	DIN933 M 6 x 25	8
10	F29178	Bracket	90 x 88 x 64	1
11	F29177	Bracket	90 x 88 x 64	1
12	F25987	Cylinder head screw	DIN84 M 5 x 30	4
13	F25303	Cable	ÖZ-J 7x1.0 mm²	3.4
14	F25303	Cable	ÖZ-J 7x1.0 mm²	5.2
15	F29040	Limit switch	Ti2-SU1Z Hw	1
16	F20948	Cable gland	M 16 x 1.5	1
