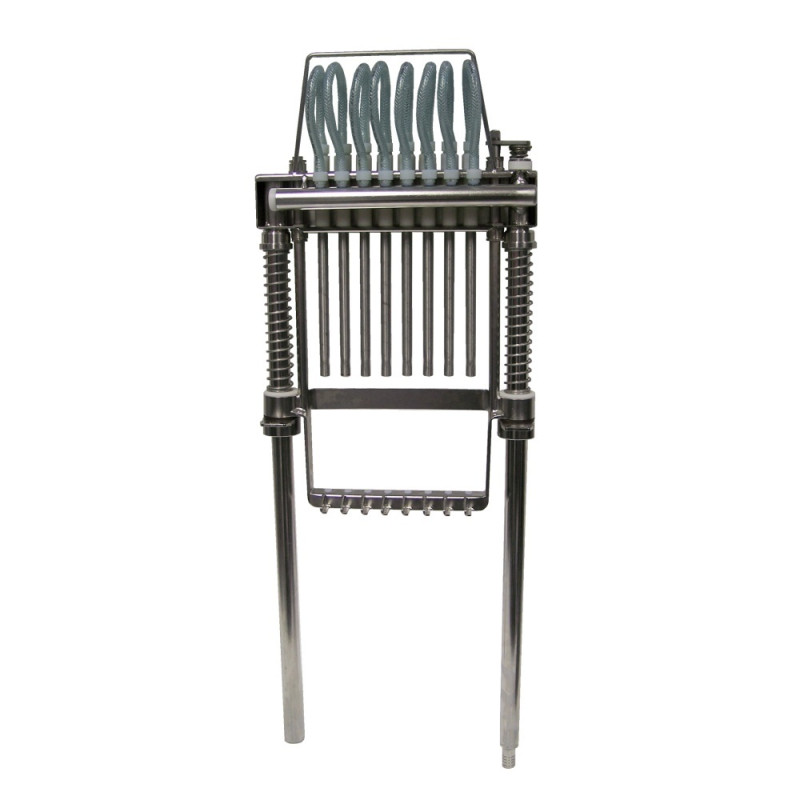

Needle Beam Complete Ruhle Injector PR10 No. 2515 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F20006 | bushing | Ø 47 x Ø 30,4 x 28 | 2 |
 |
2 | 100349 | Tube | PR 8-15 | 10 |
 |
3 | F20122 | bushing | Ø 15 x Ø 25 x 79 | 10 |
 |
4 | F20127 | Plug | Ø 30 x 28 | 1 |
 |
5 | F20134 | Cap nut | DIN917 M 8 | 1 |
 |
6 | F20137 | O-ring | Ø 19 x 3,5 | 1 |
 |
7 | F21260 | Spring lock washer | DIN127 B 8 | 1 |
 |
8 | F21299 | Seal | Ø 30 x Ø 50 x 3 | 2 |
 |
9 | F26058 | Cylinder head screw | DIN912 M 8 x 30 | 2 |
 |
10 | F22888 | Washer | DIN125 A 8,4 | 1 |
 |
11 | F23255 | plate / sheet | 60 x 20 x 5 | 1 |
 |
12 | F23502 | Coupling | Ø 12 x Ø 5 x 40 | 10 |
 |
13 | F20171 | Hose | Ø 6 x 3 x 320 | 10 |
 |
14 | F27791 | Clamping ring | Ø 13 x Ø 20 x 12 | 20 |
 |
15 | F457740 | Clamping ring | PR 10 - 20 | 1 |
 |
16 | F40173 | Needle beam | PR 10 | 1 |
 |
17 | 105521 | valve unit | PR 10 | 1 |
 |
18 | F41302 | Cable gland | PR 8 - 20 | 4 |
 |
19 | F457742 | Clamping ring | PR 10 - 20 | 1 |
 |
20 | F40228 | Suppressor | PR 10 | 1 |
 |
21 | F20112 | Pressure spring | d2.8 x De38 x 285 | 2 |
 |
22 | F21306 | bushing | Ø 31,5 x Ø 50 x 35 | 2 |
 |
23 | F20121 | bushing | Ø 7 x Ø 12 x 20 | 10 |
