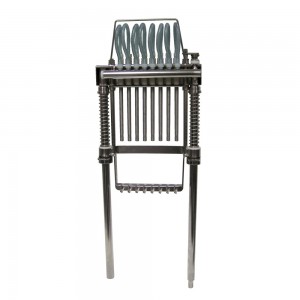

Nadelbalken Complete PR10 Injector No. 2515 and Higher

Type: F40170
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1957

* Nadelbalken Complete PR 10 No 2515 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Nadelbalken Complete PR10 Injector No. 2515 and Higher

Type: F40170
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1957

* Nadelbalken Complete PR 10 No 2515 and higher:
--F20006 Buchse
--100349 Rohr
--F20122 Buchse
--F20127 Stopfen
--F20134 Hutmutter
--F20137 O-Ring
--F21260 Federring
--F21299 Dichtung
--F26058 Zylinderschraube
--F22888 U-Scheibe
--F23255 Blech
--F23502 Stutzen
--F20171 Schlauch
--F27791 Klemmring
--F457740 Klemmring
--F40019 Nadelbalken
--F41253 Ventileinheit
--F41302 Kabelverschraubung
--F457742 Klemmring
--F40228 Niederhalter
--F20112 Druckfeder
--F21306 Buchse
--F20121 Buchse

Needle Beam Complete Ruhle Injector PR10 No. 2515 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F20006	bushing	Ø 47 x Ø 30,4 x 28	2
2	100349	Tube	PR 8-15	10
3	F20122	bushing	Ø 15 x Ø 25 x 79	10
4	F20127	Plug	Ø 30 x 28	1
5	F20134	Cap nut	DIN917 M 8	1
6	F20137	O-ring	Ø 19 x 3,5	1
7	F21260	Spring lock washer	DIN127 B 8	1
8	F21299	Seal	Ø 30 x Ø 50 x 3	2
9	F26058	Cylinder head screw	DIN912 M 8 x 30	2
10	F22888	Washer	DIN125 A 8,4	1
11	F23255	plate / sheet	60 x 20 x 5	1
12	F23502	Coupling	Ø 12 x Ø 5 x 40	10
13	F20171	Hose	Ø 6 x 3 x 320	10
14	F27791	Clamping ring	Ø 13 x Ø 20 x 12	20
15	F457740	Clamping ring	PR 10 - 20	1
16	F40173	Needle beam	PR 10	1
17	105521	valve unit	PR 10	1
18	F41302	Cable gland	PR 8 - 20	4
19	F457742	Clamping ring	PR 10 - 20	1
20	F40228	Suppressor	PR 10	1
21	F20112	Pressure spring	d2.8 x De38 x 285	2
22	F21306	bushing	Ø 31,5 x Ø 50 x 35	2
23	F20121	bushing	Ø 7 x Ø 12 x 20	10

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: [email protected]

Description

Needle Beam Complete Ruhle Injector PR10 No. 2515 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F20006	bushing	Ø 47 x Ø 30,4 x 28	2
2	100349	Tube	PR 8-15	10
3	F20122	bushing	Ø 15 x Ø 25 x 79	10
4	F20127	Plug	Ø 30 x 28	1
5	F20134	Cap nut	DIN917 M 8	1
6	F20137	O-ring	Ø 19 x 3,5	1
7	F21260	Spring lock washer	DIN127 B 8	1
8	F21299	Seal	Ø 30 x Ø 50 x 3	2
9	F26058	Cylinder head screw	DIN912 M 8 x 30	2
10	F22888	Washer	DIN125 A 8,4	1
11	F23255	plate / sheet	60 x 20 x 5	1
12	F23502	Coupling	Ø 12 x Ø 5 x 40	10
13	F20171	Hose	Ø 6 x 3 x 320	10
14	F27791	Clamping ring	Ø 13 x Ø 20 x 12	20
15	F457740	Clamping ring	PR 10 - 20	1
16	F40173	Needle beam	PR 10	1
17	105521	valve unit	PR 10	1
18	F41302	Cable gland	PR 8 - 20	4
19	F457742	Clamping ring	PR 10 - 20	1
20	F40228	Suppressor	PR 10	1
21	F20112	Pressure spring	d2.8 x De38 x 285	2
22	F21306	bushing	Ø 31,5 x Ø 50 x 35	2
23	F20121	bushing	Ø 7 x Ø 12 x 20	10
