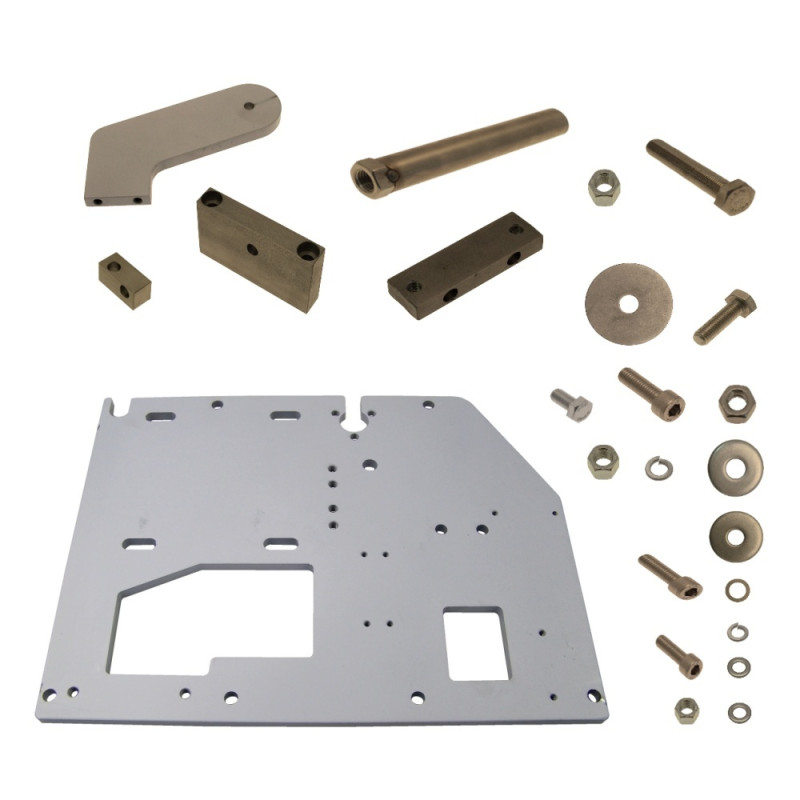

Plate Drive Complete for Ruhle SR2 Dicer No. 249 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F26906 | Plate | 480 x 370 x 12 | 1 |
 |
2 | F20202 | Washer | DIN125 A 13 | 4 |
 |
3 | F20204 | Hexagonal nut | DIN934 M 12 | 4 |
 |
4 | F26907 | Housing | 45 x 20 x 20 | 2 |
|
5 | F27693 | Washer | DIN125 A 10,5 | 19 |
 |
6 | F25962 | Cylinder head screw | DIN912 M10 x 30 | 2 |
 |
7 | F26379 | Spring lock washer | DIN127 B 10 | 21 |
 |
8 | F26908 | Bracket | 116 x 60 x 20 | 1 |
 |
9 | F28109b | Compensating disc | Ø 12 x Ø 18 x 0,5 | 4 |
|
10 | F28773 | Cylinder head screw | DIN912 M10 x 70 | 2 |
 |
11 | F22907 | Washer | Ø 10,5 x Ø 35 x 3 | 2 |
 |
12 | F23646 | Disc | Ø 12,5 x Ø 35 x 4 | 2 |
|
13 | F20210 | Spring lock washer | DIN127 A 12 | 2 |
 |
15 | F26910 | Plate | 100 x 30 x 15 | 1 |
|
16 | F21807 | Cylinder head screw | DIN912 M10 x 60 | 2 |
 |
17 | F20047 | Hexagonal nut | DIN439 M 10 | 2 |
 |
18 | F20693 | Hexagonal bolt | DIN933 M10 x 35 | 2 |
 |
19 | F27226 | Disc | Ø 11 x Ø 50 x 5 | 1 |
 |
20 | F26909 | Bracket | 206 x 150 x 15 | 1 |
 |
21 | F20402 | Hexagonal bolt | DIN933 M10 x 30 | 2 |
 |
22 | F42237 | Support | SR 2 Turbo | 1 |
 |
23 | F22276 | Hexagonal bolt | DIN933 M20 x130 | 1 |
|
24 | F20563 | Hexagonal nut | DIN934 M 20 | 3 |
