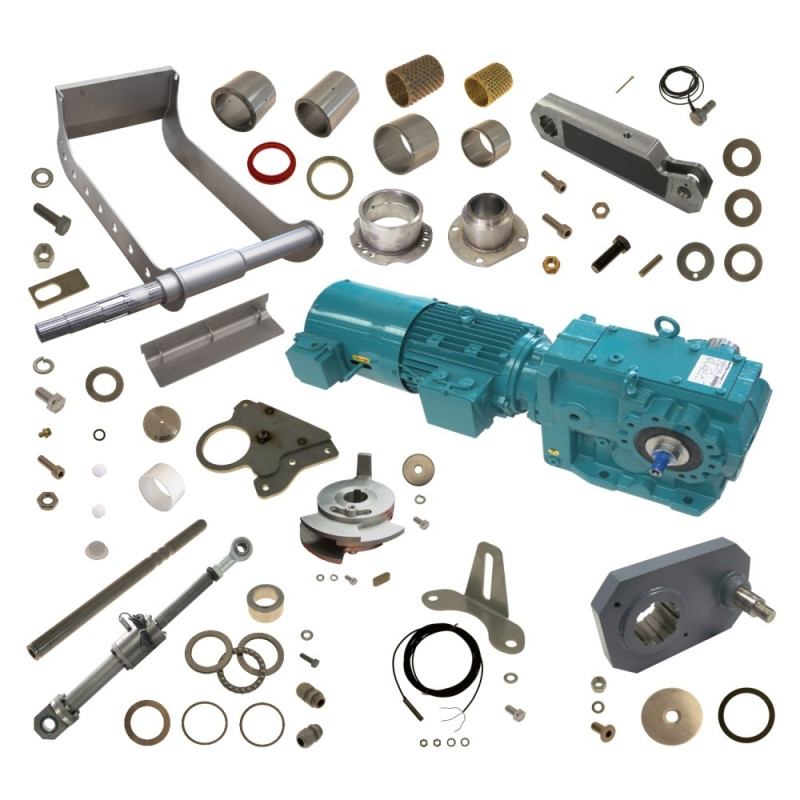

Pre-compacter Assembly Dicer SR3 No. 70 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F28409 | Inner ring | Ø 70 x Ø 80 x 54 | 2 |
 |
2 | F28455 | Ring | Ø 100 x Ø 120 x 16 | 1 |
 |
3 | F28456 | Scraper | 85 x 110 x 16,5 | 1 |
 |
4 | F28457 | Disc | Ø 87 x Ø 119,6 x 3 | 1 |
 |
5 | F28411 | Ball bearing retainer | Ø 80 x Ø 92 x 95 | 1 |
 |
6 | F242163 | Disc | Ø 70,5 x Ø 79 x 5 | 1 |
 |
7 | F242164 | Disc | Ø 70,5 x Ø 79 x 8 | 1 |
 |
8 | F41836 | Lever | SR 3 | 1 |
 |
9 | F28412 | Ring | Ø 60 x Ø 90 x 45 | 1 |
 |
10 | F28497 | Axial grooved ball bearing | DIN711 51113 | 1 |
 |
11 | F28427 | Ring | Ø 90 x Ø 103 x 52 | 1 |
 |
12 | F28413 | Inner ring | Ø 55 x Ø 63 x 45 | 2 |
 |
13 | F42321 | Housing | SR 3 | 1 |
 |
14 | F20202 | Washer | DIN125 A 13 | 4 |
 |
15 | F20230 | Hexagonal bolt | DIN933 M12 x 40 | 4 |
 |
16 | F28482 | plate / sheet | 53 x 22 x 3 | 1 |
 |
17 | F20204 | Hexagonal nut | DIN934 M 12 | 1 |
 |
18 | F28414 | Ball bearing retainer | Ø 63 x 73 x 88 | 1 |
 |
19 | F28415 | Lid | Ø 9 x Ø 70 x 18 | 1 |
 |
20 | F21260 | Spring lock washer | DIN127 B 8 | 1 |
 |
21 | F20687 | Hexagonal bolt | DIN933 M 8 x 35 | 1 |
 |
22 | F41838 | Overload safety device | SR 3 | 1 |
 |
23 | F41846 | drive | SR 3 | 1 |
 |
24 | F445401 | Pre-compacter arm | SR 3 | 1 |
 |
25 | F257759 | Plug | Ø 35 x 11,7 | 1 |
 |
26 | F28417 | bolt | Ø 3 x Ø 18 x 10 | 4 |
 |
27 | F41841 | Adapter | SR 3 | 1 |
 |
28 | F28416 | Shaft | Ø 30 x 526 | 1 |
|
29 | F28417 | bolt | Ø 3 x Ø 18 x 10 | 2 |
 |
30 | F27903 | O-ring | Ø 20 x 4 | 1 |
 |
31 | F41842 | Housing | SR 3 | 1 |
 |
32 | F28458 | bushing | Ø 92 x Ø 120 x 100 | 1 |
 |
33 | F28483 | Grease nipple | M 10 x 1 | 1 |
 |
34 | F22164 | Cylinder head screw | DIN912 M12 x 20 | 6 |
|
35 | F20202 | Washer | DIN125 A 13 | 3 |
 |
36 | F20179 | Hexagonal nut | DIN439 M 12 | 3 |
 |
37 | F41837 | Housing | SR 3 | 1 |
 |
38 | F28460 | bushing | Ø 73 x Ø 90 x 110 | 1 |
|
39 | F28483 | Grease nipple | M 10 x 1 | 1 |
|
40 | F20202 | Washer | DIN125 A 13 | 4 |
|
41 | F20230 | Hexagonal bolt | DIN933 M12 x 40 | 4 |
