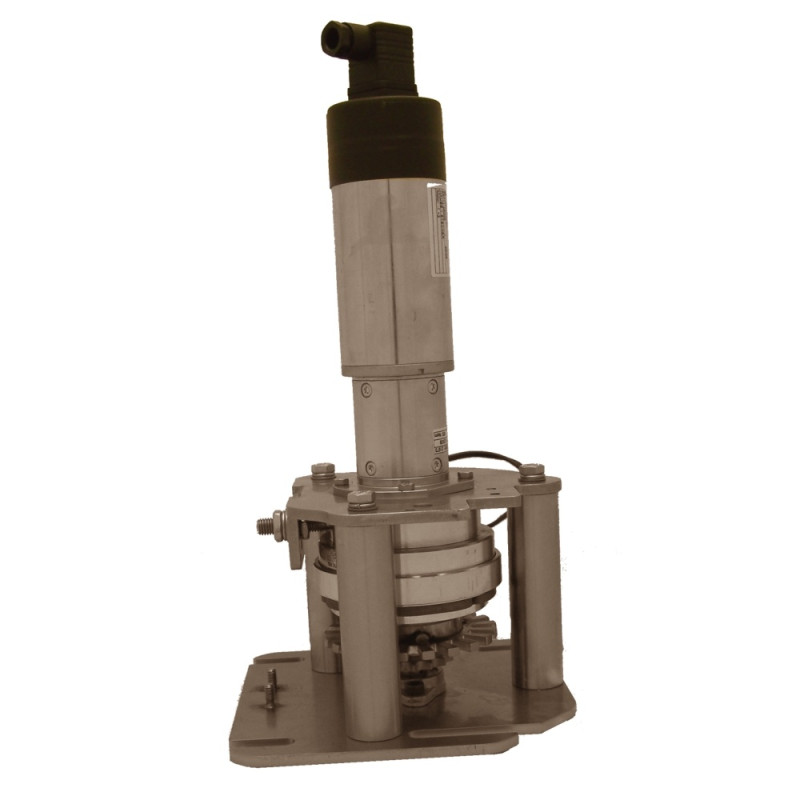

Pre-compacting Complete for SR2 Meat Dicer
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 103354 | Housing | SR 2 Turbo | 1 |
 |
2 | F20258 | Washer | DIN125 A 6,4 | 2 |
 |
3 | F24031 | Spring lock washer | DIN127 B 6 | 2 |
 |
4 | F26145 | Hexagonal nut | DIN934 M 6 | 2 |
 |
5 | F20560 | Cylinder head screw | DIN912 M 6 x 22 | 2 |
 |
6 | F20624 | Flange bearing | UCFL 001 2-Loch | 1 |
 |
7 | F27788 | Tapered ball bearing | DIN628 - 3201 2RS | 1 |
 |
8 | F28109 | Compensating disc | Ø 12 x Ø 18 x 0,1 | 3 |
|
9 | F28109a | Compensating disc | Ø 12 x Ø 18 x 0,25 | 1 |
|
10 | F28109b | Compensating disc | Ø 12 x Ø 18 x 0,5 | 1 |
 |
11 | 105026 | Ring | Ø 12,5 x Ø 25 x 6,3 | 1 |
 |
12 | 105028 | Signal plate | SR 2 T/ SR 2 / SR 3 | 1 |
 |
13 | F25432 | Grub Screw | DIN914 M 6 x 10 | 1 |
 |
14 | F26987 | Chain wheel shaft | Ø 50 x 80 Z 15 | 1 |
 |
15 | F26363 | Spring key | A 6 x 6 x 18 | 1 |
 |
16 | F26992 | Plate / Sheet | 160,5 x 156 x 40 x 6 | 1 |
 |
17 | F26993 | Hexagonal bolt | DIN933 M 5 x 10 | 4 |
 |
18 | F26994 | Threaded pin | M 10 x 45 | 1 |
 |
19 | F20047 | Hexagonal nut | DIN439 M 10 | 2 |
 |
20 | F26995 | Disc | Ø 12,1 x Ø 25 x 2 | 1 |
 |
21 | F26985 | Shaft | Ø 30 x 113,5 | 3 |
 |
22 | F20208 | Countersunk screw | DIN7991 M 8 x 20 | 3 |
|
23 | F21260 | Spring lock washer | DIN127 B 8 | 3 |
|
24 | F22449 | Hexagonal Bolt | DIN933 M 8 x 20 | 3 |
 |
25 | F27511 | Single chain | 3/8 x 7/32" | 1 |
|
26 | F26379 | Spring lock washer | DIN127 B 10 | 1 |
|
27 | F27693 | Washer | DIN125 A 10,5 | 1 |
|
28 | F20402 | Hexagonal Bolt | DIN933 M10 x 30 | 4 |
|
29 | F26379 | Spring lock washer | DIN127 B 10 | 4 |
 |
30 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 4 |
 |
31 | F41816 | Gear motor | GR 63*55 | 1 |
 |
32 | 105025 | Solenoid coupling | 14.105.10.3.1 | 1 |
 |
33 | F20712 | Shrink hose | HIS - 3/16" | 350 mm |
