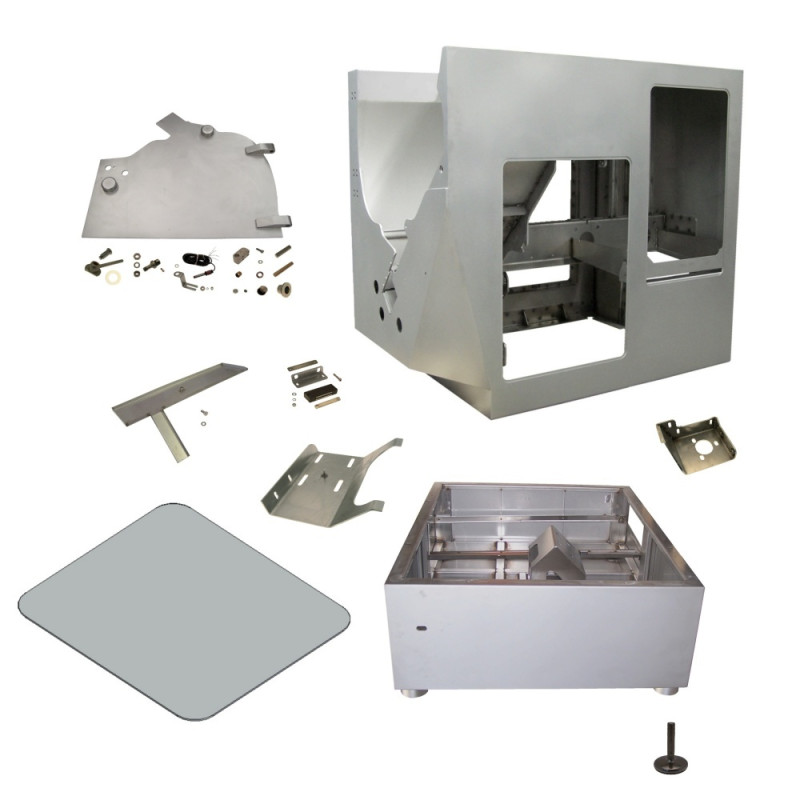

Rack Assembly Ruhle Meat Dicer SR3 No. 70 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F441238 | rack | SR 3 | 1 |
 |
2 | F447748 | rack | SR 3 | 1 |
 |
3 | F24901 | Washer | Ø 12,5 x Ø 35 x 3 | 12 |
 |
4 | F20323 | Hexagonal bolt | DIN933 M12 x 25 | 4 |
 |
5 | F42289 | door | SR 3 | 1 |
 |
6 | F42354 | Bracket | SR 3 | 13 |
 |
7 | 103588 | Cable duct | 80 x 45 x 2000 | 600 mm |
|
8 | F28731 | Cable duct | 80 x 30 x 2000 | 2200 mm |
 |
9 | F27701 | Cable duct | 32 x 18 x 2000 | 2380 mm |
 |
10 | F244731 | Cable duct | 19 x 19 x 2000 | 1850 mm |
 |
11 | 104665 | Pan | SR 3 | 1 |
 |
12 | F443392 | Segment | SR 3 | 1 |
|
13 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 4 |
 |
14 | F26379 | Spring lock washer | DIN127 B 10 | 4 |
|
15 | F20402 | Hexagonal bolt | DIN933 M10 x 30 | 4 |
 |
16 | F22172 | Cloth | 80 x 20 x 4 | 1 |
|
17 | F24522 | Hexagonal bolt | DIN933 M 6 x 25 | 1 |
 |
18 | F28732 | lock washer | DIN6797-A ø 6,4 | 7 |
 |
19 | F20258 | Washer | DIN125 A 6,4 | 8 |
|
20 | F24031 | Spring lock washer | DIN127 B 6 | 7 |
 |
21 | F20203 | Hexagonal nut | DIN934 M 6 | 8 |
 |
22 | F20959 | Plug | Ø 30 x 20 | 1 |
 |
23 | F21825 | Holding clamp | A 100 | 1 |
|
24 | F20258 | Washer | DIN125 A 6,4 | 2 |
|
25 | F24031 | Spring lock washer | DIN127 B 6 | 2 |
|
26 | F20203 | Hexagonal nut | DIN934 M 6 | 2 |
|
27 | F27518 | Hexagonal nut | DIN934 M 24 | 4 |
 |
28 | F240860 | Machine base | Ø 120 x 150 x M 24 | 4 |
 |
29 | F240830 | Bracket | 416 x 88 x 60 x 8 | 2 |
|
30 | F20210 | Spring lock washer | DIN127 B 12 | 8 |
|
31 | F21042 | Hexagonal bolt | DIN933 M12 x 30 | 8 |
 |
32 | 104694 | Bracket | SR 3 | 2 |
 |
33 | F26600 | Disc | Ø 8,5 x Ø 20 x 2 | 1 |
|
34 | F21260 | Spring lock washer | DIN127 B 8 | 1 |
|
35 | F20259 | Hexagonal nut | DIN934 M 8 | 1 |
 |
36 | F28728 | Grooved ball bearing | DIN625 - 6300 2RS | 2 |
 |
37 | 107360 | Boden | 519,5 x 459,5 x 3 | 1 |
 |
38 | F41786 | Console | SR 3 | 1 |
|
39 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 6 |
|
40 | F26379 | Spring lock washer | DIN127 B 10 | 6 |
|
41 | F22138 | Hexagonal bolt | DIN933 M10 x 25 | 4 |
|
42 | F20402 | Hexagonal bolt | DIN933 M10 x 30 | 2 |
 |
43 | F445214 | Housing | SR 3 | 1 |
