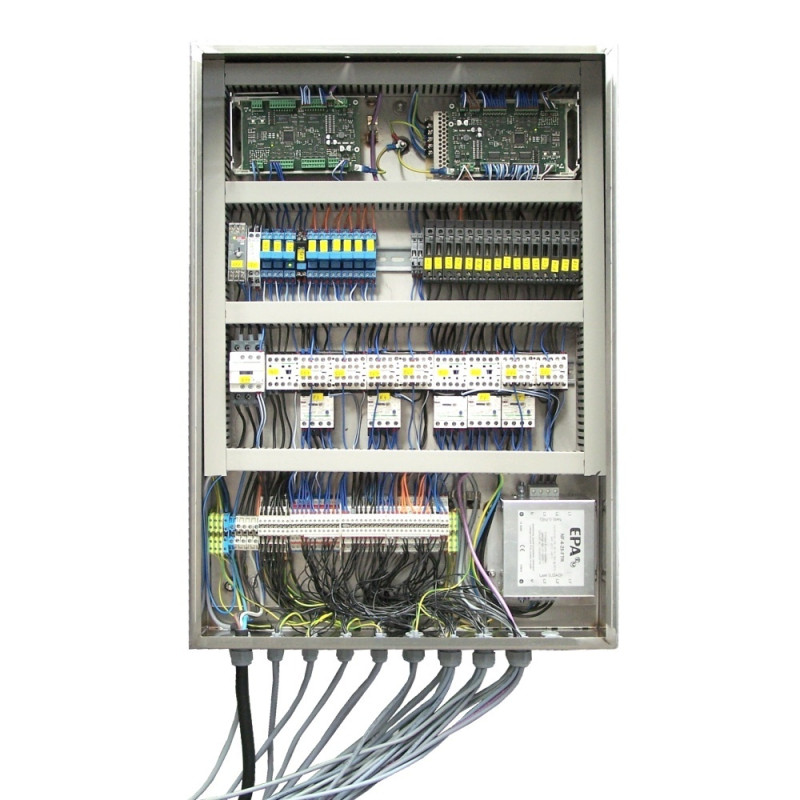

Schaltkasten Assembly Ruhle Tumbler MGR400 108211
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 108587 | Schaltkasten | MGR 400/900 | 1 |
 |

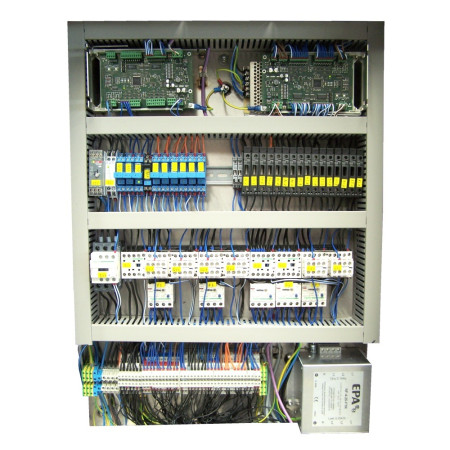

2 | 108213 | Montageplatte | MGR 400 | 1 |
 |
3 | 108111 | Deckel | 790 x 560 x 15 x 2 | 1 |
 |

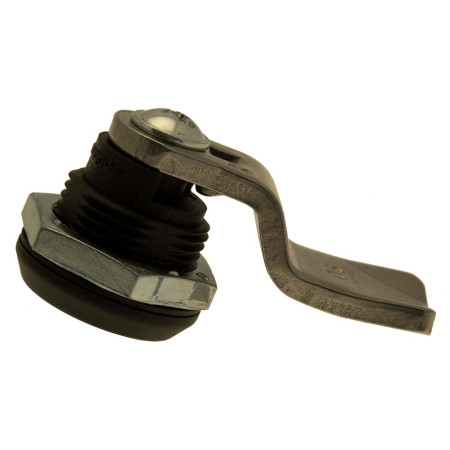

4 | 105860 | Riegelverschluß | IR 56 | 4 |
 |
5 | F26336 | lock washer | DIN6797-A Ø 5,3 | 1 |
 |
6 | F25910 | Hexagonal bolt | DIN933 M 5 x 25 | 1 |
 |
7 | F21045 | Washer | DIN125 A 5,3 | 3 |
 |
8 | F20260 | Spring lock washer | DIN127 B 5 | 1 |
 |
9 | F21028 | Hexagonal nut | DIN934 M 5 | 2 |
 |
10 | F20664 | Seal | 18 x 3 | 1.58 m |
|
11 | F20664 | Seal | 18 x 3 | 1.04 m |
|
12 | F20203 | Hexagonal nut | DIN934 M 6 | 3 |
|
13 | F24031 | Spring lock washer | DIN127 B 6 | 3 |
 |
14 | F20258 | Washer | DIN125 A 6,4 | 3 |
 |
15 | 106969 | Winkel | 40 x 40 x 5 | 3 |
|
16 | F22888 | U-Scheibe | DIN125 A 8,4 | 3 |
|
17 | F21260 | Federring | DIN127 B 8 | 3 |
|
18 | F20259 | Sechskantmutter | DIN934 M 8 | 3 |
 |
19 | F144451 | Rundschnur | Ø 6 Silikon klar | 0.1 m |
 |
20 | F10131 | Sticker | flash | 1 |
 |
21 | F148541 | Sticker | BMK02 | 1 |
 |

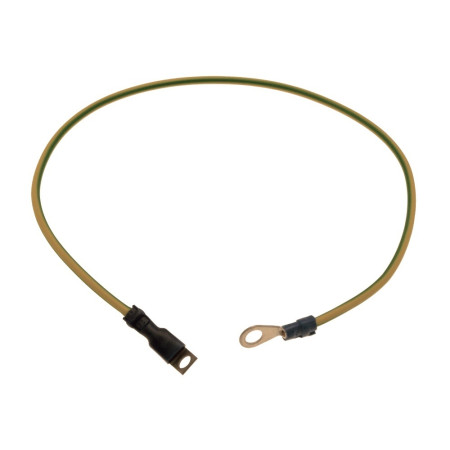

22 | 107800 | Erdungskabel | Deckel - SK 1 MGR | 1 |
 |
23 | F26132 | Sealing ring | M 25 / 4 x 6 mm | 10 |
 |

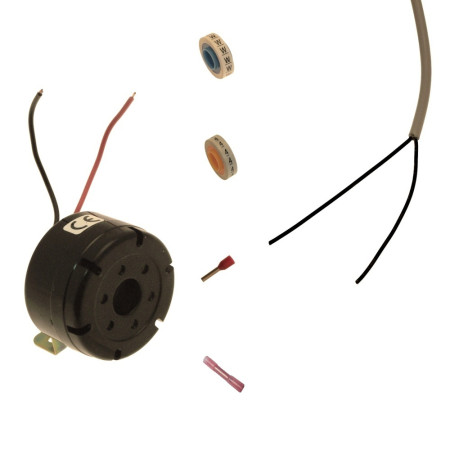

24 | 108285 | Kabel für Hupe | MGR 400/900/1500 | 1 |
 |

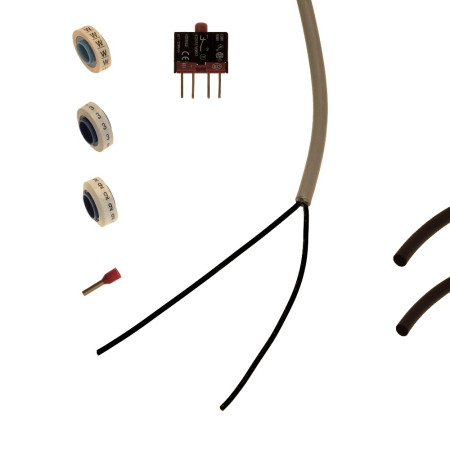

25 | 108848 | Kabel für Not-Ausschalter | MGR 400/900 | 1 |
