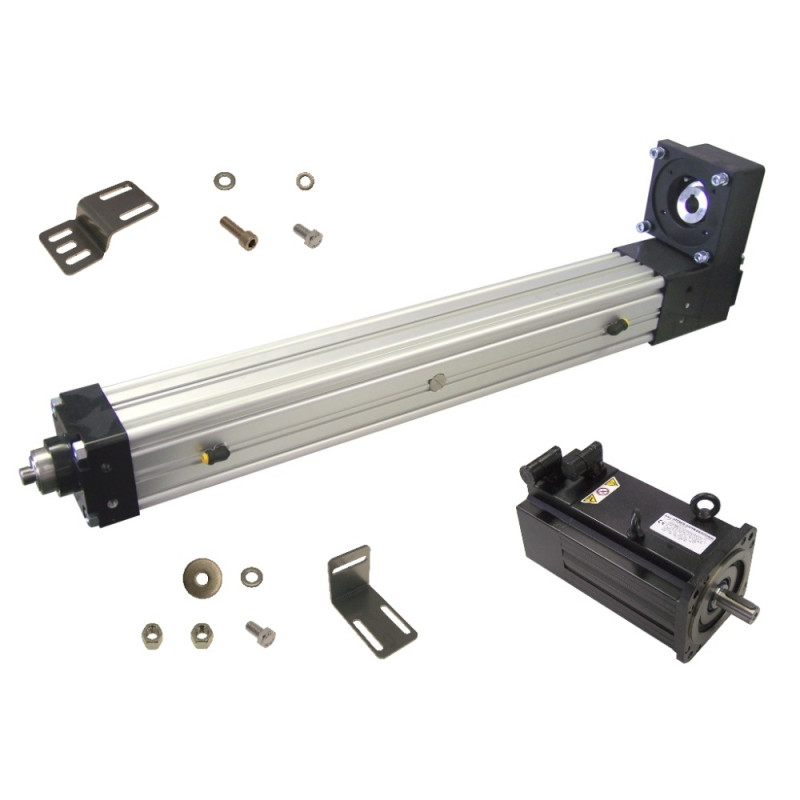

Servo Spindle Drive Exploded View Ruhle SR3 No. 35 and Higher
- Stock: On order
- Brand: Ruhle
- Type: 104739et
Servo Spindle Drive Exploded View Ruhle SR3 No. 35 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F27693 | Washer | DIN125 A 10,5 | 4 |
 |
2 | F25962 | Cylinder head screw | DIN912 M10 x 30 | 4 |
 |
3 | F21045 | Washer | DIN125 A 5,3 | 4 |
 |
4 | F26993 | Hexagonal bolt | DIN933 M 5 x 10 | 4 |
 |
5 | F247818 | Bracket | 52 x 179 x 90 x 6 | 1 |
 |
6 | F252732 | Bracket | 145 x 95 x 80 x 5 | 1 |
|
7 | F20202 | Washer | DIN125 A 13 | 6 |
|
8 | F21042 | Hexagonal bolt | DIN933 M12 x 30 | 4 |
 |
9 | F20204 | Hexagonal nut | DIN934 M 12 | 2 |
 |
10 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 2 |
|
11 | F20147 | Hexagonal nut | DIN934 M 10 | 2 |
 |
12 | F247512 | Servo motor | ED704UM0210 | 1 |
 |
13 | F247631 | Electric cylinder | ETB100-M10PA87-FMA600-A | 1 |
