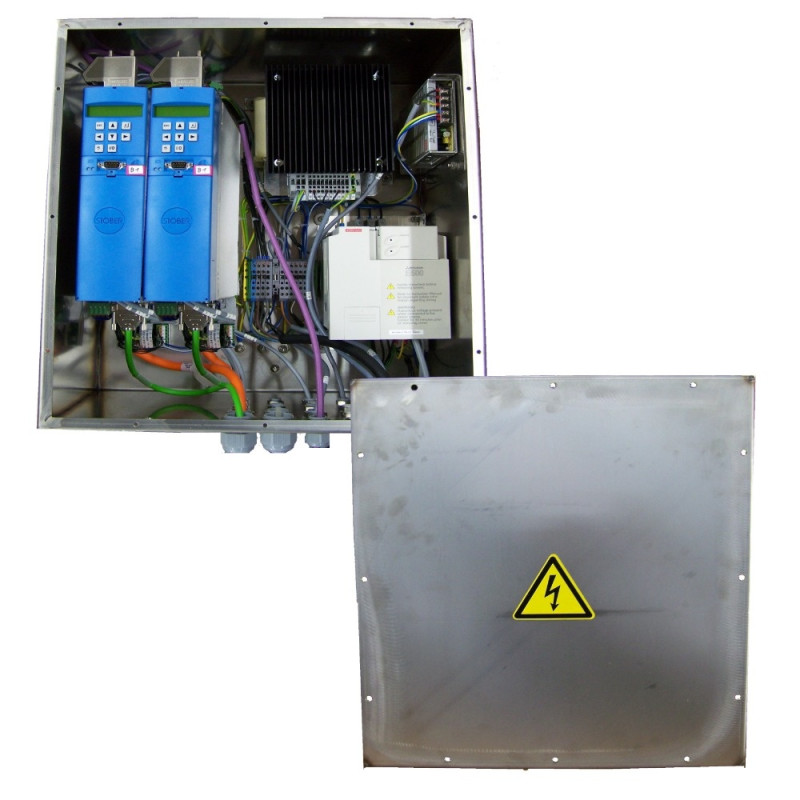

Switch Box Assembly Ruhle IR112 F450678
| Pos No. | Part No. | Description | Add Info | Required | |
| 1 | 100402 | Switch box | IR 112 | 1 | |
 |
2 | 100193 | Mounting plate | 33 x 125 x 165 x 2 | 1 |
 |
3 | F20258 | Washer | DIN125 A 6,4 | 6 |
 |
4 | F24021 | Spring lock washer | DIN127 B 8 | 6 |
 |
5 | F20203 | Hexagonal nut | DIN934 M 6 | 6 |
 |
6 | F20258 | lock washer | DIN6797-A ø 6,4 | 4 |
 |
7 | F23418 | Disc | Ø 8,5 x Ø 35 x 3 | 2 |
|
8 | F21260 | Spring lock washer | DIN127 B 6 | 2 |
 |
9 | F22449 | Hexagonal bolt | DIN933 M 8 x 20 | 2 |
 |
10 | F20664 | Seal | 18 x 3 | 960 mm |
 |
11 | F250695 | Lid | 500 x 455 x 18 x 2 | 1 |
 |
12 | F21045 | Washer | DIN125 A 5,3 | 16 |
|
13 | F20260 | Spring lock washer | DIN127 B 5 | 20 |
 |
14 | F22174 | Cylinder head screw | DIN912 M 5 x 12 | 20 |
 |
15 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 4 |
|
16 | F21047 | Hexagonal bolt | DIN933 M 6 x 12 | 4 |
 |
17 | F148541 | Sticker | BMK02 | 4 |
 |
18 | F10131 | Sticker | flash | 1 |
 |
19 | F29046 | Line filter 0.75kW | FFR-E540 - 4.5A-SF1-LL | 1 |
 |
20 | 106082 | Programmed FC | FR-E540 - 0.75K-EC | 1 |
 |
21 | F20723 | Fuse terminal grey | 5.0 x 20mm | 1 |
 |
22 | F27064 | Fuse 3.15 AT | 5,0 x 20 mm | 2 |
 |
23 | F27068 | Power supply 400VAC/24VDC | DNL 25 | 1 |
 |
24 | F248631 | Power supply 230VAC/24VDC | SP75-24 | 1 |
 |
25 | 102225 | BUS cable | IR 112 | 1 |
 |
26 | F27555 | Cable | H07RN-F 5G2.5 | 4000 mm |
 |
27 | F27320 | Cable | ÖZ-O 2x2.5 mm² | 3400 mm |
 |
28 | F27759 | Cable | ÖCYZ-J 4x1.5 mm² | 2300 mm |
 |
29 | F23525 | Cable | ÖZ-J 5 x 1.0 mm² | 3450 mm |
 |
30 | F23066 | Cable | ÖZ-J 4 x 1.0 mm² | 3700 mm |
 |
31 | F23343 | Cable | ÖZ-J 3 x 1.0 mm² | 3250 mm |
|
32 | F28100 | Cable | Liycy 3 x 0.5 mm² | 3200 mm |
|
33 | F28100 | Cable | Liycy 3 x 0.5 mm² | 3550 mm |
|
34 | F28100 | Cable | Liycy 3 x 0.5 mm² | 4500 mm |
|
35 | F28100 | Cable | Liycy 3 x 0.5 mm² | 3550 mm |
|
36 | F28100 | Cable | Liycy 3 x 0.5 mm² | 3500 mm |
|
37 | F28100 | Cable | Liycy 3 x 0.5 mm² | 3500 mm |
|
38 | F28100 | Cable | Liycy 3 x 0.5 mm² | 3000 mm |
 |
39 | F247477-1 | Servo converter | MDS 5040/L | 1 |
|
40 | F247477-2 | Servo converter | MDS 5040/L | 1 |
