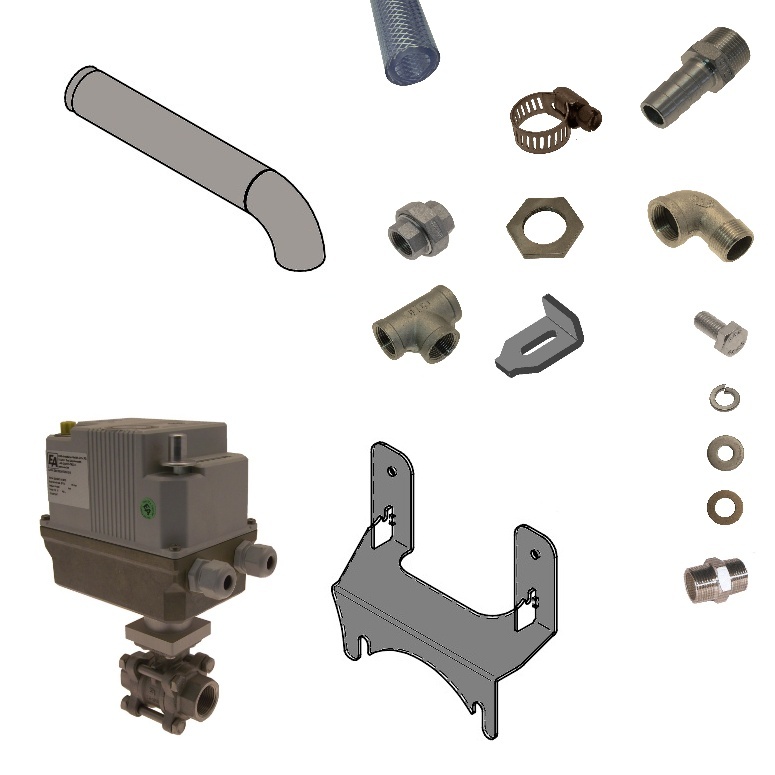

Valve Unit Complete 1 for IR112
| Pos No. | Part No. | Description | Add info | Required | |
 |
1 | F450139 | Housing | IR112 | 1 |
 |
2 | F250092 | Bracket | 44x35x16x4 | 2 |
 |
3 | F26600 | Disc | 8.5x20x2 | 2 |
 |
4 | F21260 | Spring Lock Washer | DIN127 B 8 | 2 |
 |
5 | F20687 | Hexagonal Bolt | DIN933 M 8x35 | 2 |
 |
6 | F252433 | Angle inside-to-outside | 90° FG 2324 3/4" | 5 |
 |
7 | F250159 | Hose Socket | R 3/4" FG 30 2420 | 6 |
 |
8 | F27648 | Hose | 19x5 | 0.45 |
|
9 | F27648 | Hose | 19x5 | 0.60 |
|
10 | F27648 | Hose | 19x5 | 0.75 |
 |
11 | F252274 | Disc | 20.3x37x3 | 1 |
|
12 | F27648 | Hose | 19x5 | 0.20 |
 |
13 | F20165 | Hose Clamp | HAS 16 Ø 17-38 | 12 |
 |
14 | F255730 | Nut | 3/4" x SW 36 x 4 | 1 |
 |
15 | F452235 | Socket | IR 112 | 1 |
 |
16 | F250163 | Double Nipple | R 3/4" a - a | 2 |
 |
17 | F252447 | Screw Joint | 3/4" | 1 |
 |
18 | F250157 | T-Piece | R 3/4" i - i - i | 1 |
 |
19 | F249433 | Valve | ZA310024-ES201210 | 2 |
