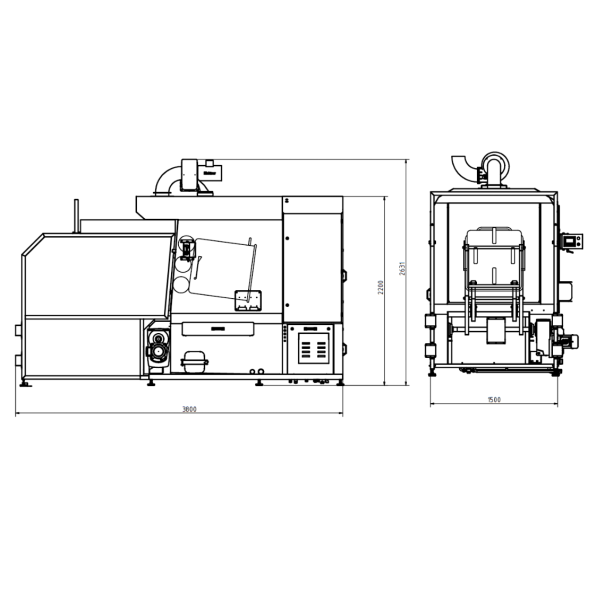

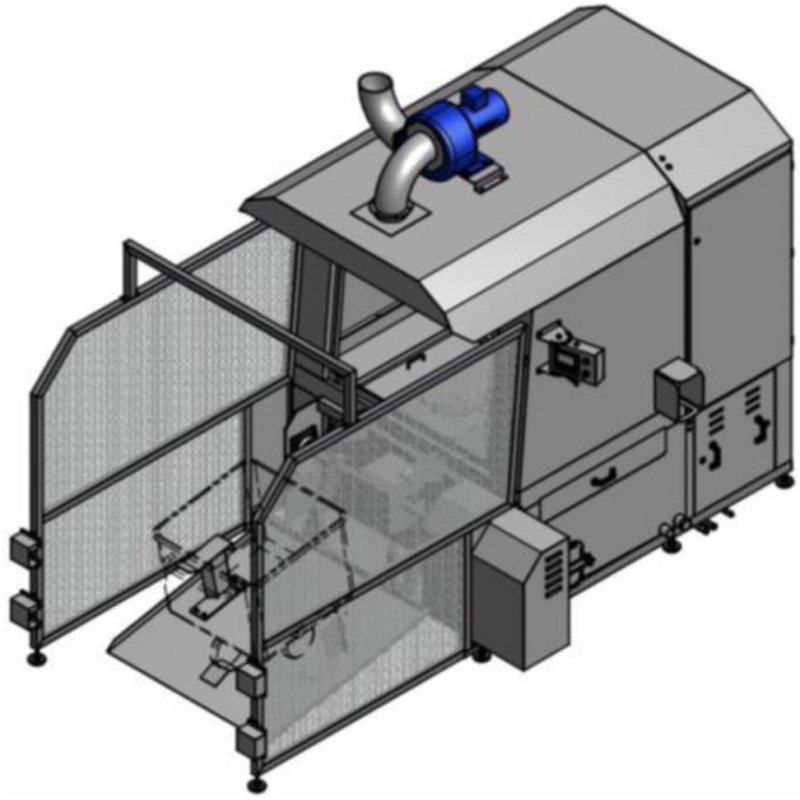

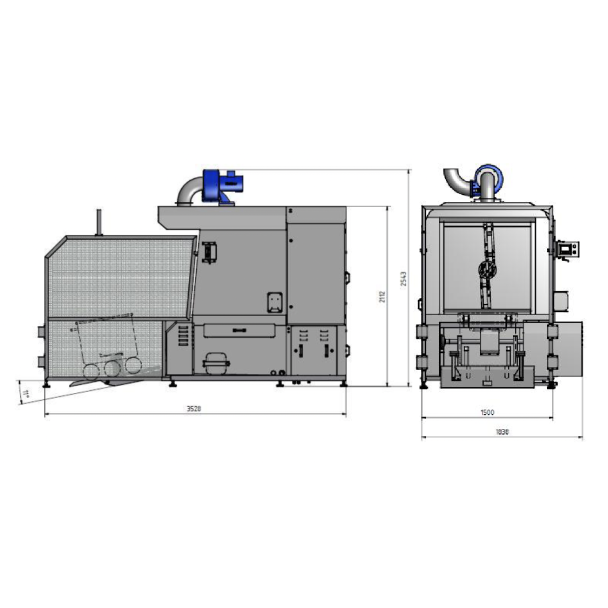

200L & 300L Front Load Buggy Washer

200L & 300L Front Load Buggy Washer

The trolley washing machine has a combined the duties of prewash, main wash and rinsing zone into one.

Operation: The washing cycles are adjustable (average duration approx. 100 sec.) and incorporates 6 phases:
1. Loading the trolley and closing the door
2. Hot water cycle at 35-60°C
3. Drip-dry period
4. Rinsing cycle with antiseptic effect at 85-92°C
5. Drip-dry period
6. Opening the door and unloading the trolley

Specifications:

• Capacity: 25-40 trolleys per hour
• Unload via an electromotive operated door (servo motor) which also seals the
  washing chamber.
• Energy-saving cascade system: the fresh rinse water is re-used to refresh the wash water
• Rotating nozzle system
• Desiccation protection (via level sensors)
• Adjustable washing time

Technical data:

• Material: Stainless steel
• Electrical: 400V/50Hz (other options available upon customer request)
• Protection class: IP55
• Pump: EBARA EVM max. 16 bar
• Pump capacity: 15.0 kW
• Water inlet tank: 3/4”AG
• Water inlet rinse water: 1/2”AG
• Drain: Dump valve 200x200mm
• Tank volume: 670 liters
• Electrical tank heater: 2 x 9kW
• Water consumption: 8-10 liters
