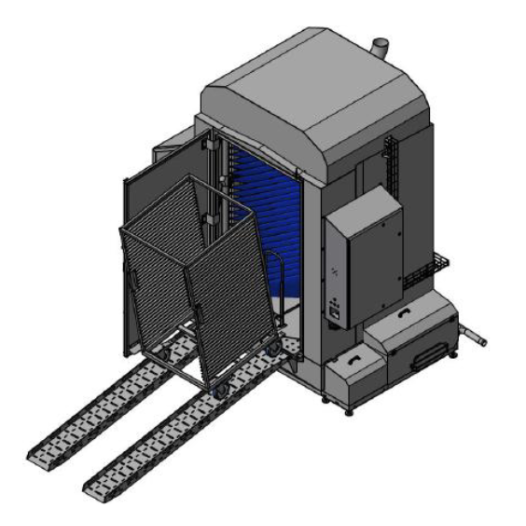

Smoke House Trolley Washer

The system is mounted on the ground, thereby the trolley can be retracted at ground level via a ramp. The loading door has a close and open switch, which will ensure the doors remain closed once cleaning cycle begins. By closing the door, the wash cycle automatically begins.

The wash cycle can be regulated, with a duration of 3-6 minutes and comprises of 5 phases:
1.  Loading and closing the door
2. Main washing
3. Rinse zone 80°C
4. Drying
5. Unloading of the trolley

Specifications:

  • Washing time: 0-12 minutes
  • Drying time: 0-3 minutes
  • Material: Stainless steel

Technical Data:

  • Capacity: 10-30 trolleys per hour (depending how soiled they are)
  • Electrical: 400V / 50HZ
  • Control voltage: 24V
  • Washing tank: 450 litre
  • Power consumption: 3kW
  • Engine: SEW Gear
  • Pressure air consumption: 4-6 bar
  • Steam connection: 3-4 bar
  • Tank heating: Direct steam
  • Rinse: Steam mixing valve
  • Pump: 22kW stainless steel medium pressure centrifugal pump
  • Gear engine: 0,55kW
