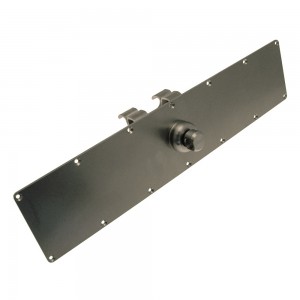

Lid Exploded View IR56 Injector 105769

Type: 105769
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1529

* Lid Exploded View IR 56 Facelift:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Lid Exploded View IR56 Injector 105769

Type: 105769
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1529

* Lid Exploded View IR 56 Facelift:
--F29305 plate / sheet
-- F240777 Nut
-- 105668 Shaft
--105851 plate / sheet
--F245085 Nut
--F20203 Hexagonal nut
-- F20258 Washer
--F24031 Spring lock washer
-- F26033 Hexagonal bolt
-- F29307 Guide
--F29194 Slide bearing
--F29138 Scraper
--F26741 Slide bushing

Lid Exploded View IR56 Injector

Pos No.	Part No.	Description	Add Info	Required
1	F29305	plate / sheet	593,6 x 133,6 x 4	1
2	F240777	Nut	M 36 x 2 x SW 60 x 6	1
3	105668	Shaft	Ø 35 x 177	1
4	105851	plate / sheet	110 x 73 x 30 x 4	2
5	F245085	Nut	M 20 x 1,5 x SW 30 x 34 x 6	1
6	F20203	Hexagonal	DIN934 M 6	2
7	F20258	Washer	DIN125 A 6,4	4
8	F24031	Spring lock washer	DIN127 B 6	2
9	F26033	Hexagonal bolt	DIN933 M 6 x 20	2
10	F29307	Guide	Ø 26 x Ø 55 x 40	1
11	F29194	Slide bearing	GSM-2528-30	1
12	F29138	Scraper	25 x 33 x 4/7	1
13	F26741	Slide bushing	DIN1850 Ø 12 x Ø 18 x 20	1
