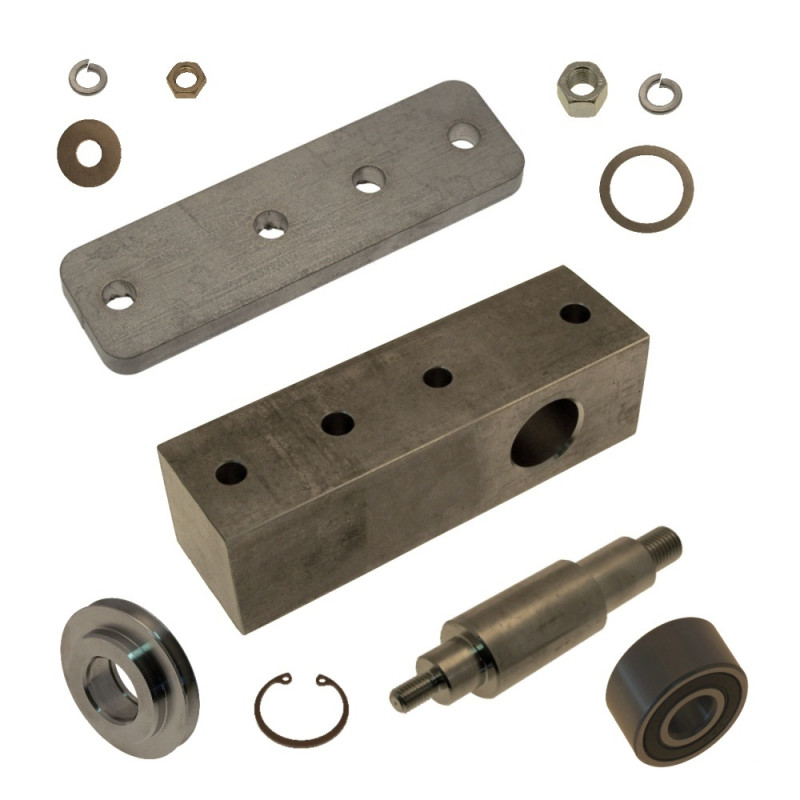

Baffle Exploded View for Ruhle SR2 Turbo Industrial Dicer No. 435
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F241304 | Plate | 170 x 50 x 12 | 1 |
 |
2 | F240572 | Housing | 170 x 50 x 50 | 1 |
 |
3 | F241286 | Disc | Ø 31 x Ø 40 x 4 | 1 |
 |
4 | F240575 | Shaft | Ø 40 x 176 | 1 |
 |
5 | F20259 | Hexagonal nut | DIN934 M 8 | 1 |
 |
6 | F20210 | Spring lock washer | DIN127 A 12 | 1 |
 |
7 | F240576 | Rolle | Ø 46 x Ø 112 x 34 | 1 |
 |
8 | F20562 | Tapered ball bearing | DIN628 - 3205 | 1 |
 |
9 | F22390 | Locking ring | DIN472 Ø 52 x 2 | 1 |
 |
10 | F240574 | Disc | Ø 13 x Ø 33 x 5 | 1 |
|
11 | F26903 | Spring lock washer | DIN127 B 20 | 1 |
 |
12 | F28761 | Hexagonal nut | DIN439M 20 | 1 |
