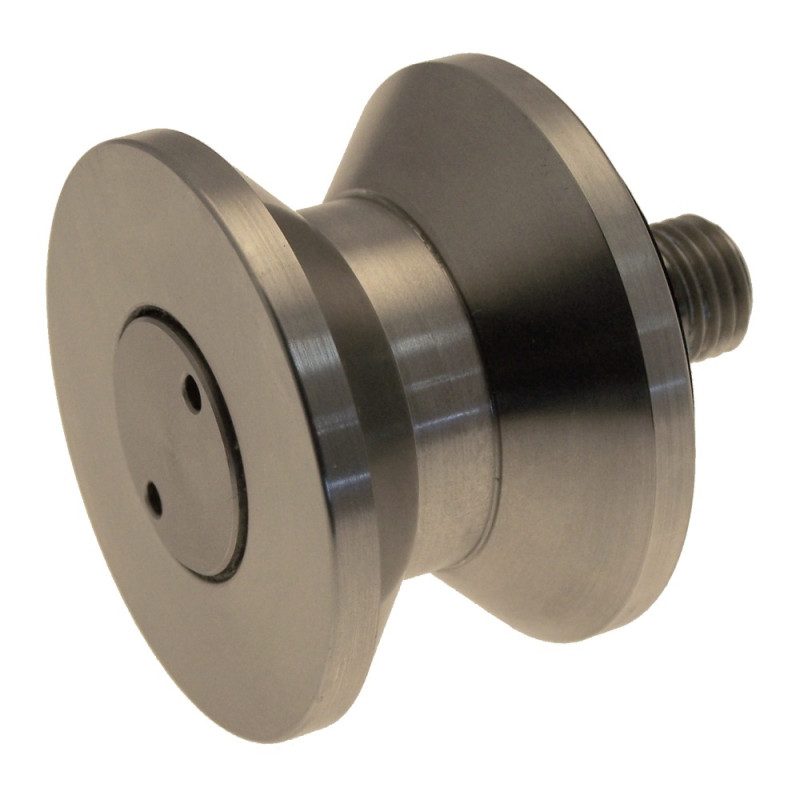

Rolle Exploded View 2 for Dicer SR2
Pos No. | Part No. | Description | Add Info | Required | |
1 | F29381 | Rolle | Ø 30 x Ø 80 x 52 | 1 | |
2 | F26877 | Tapered ball bearing | DIN628 - 3202 2RS | 2 | |
3 | F29380 | O-ring | Ø 34 x 3 | 1 | |
4 | F27442 | Sealing ring | Ø 54 x Ø 64 x 5,5 | 1 | |
5 | F241360 | Shaft | Ø 34 x 64 | 1 | |
6 | F241357 | Bolt | Ø 34 x 38 | 1 |
