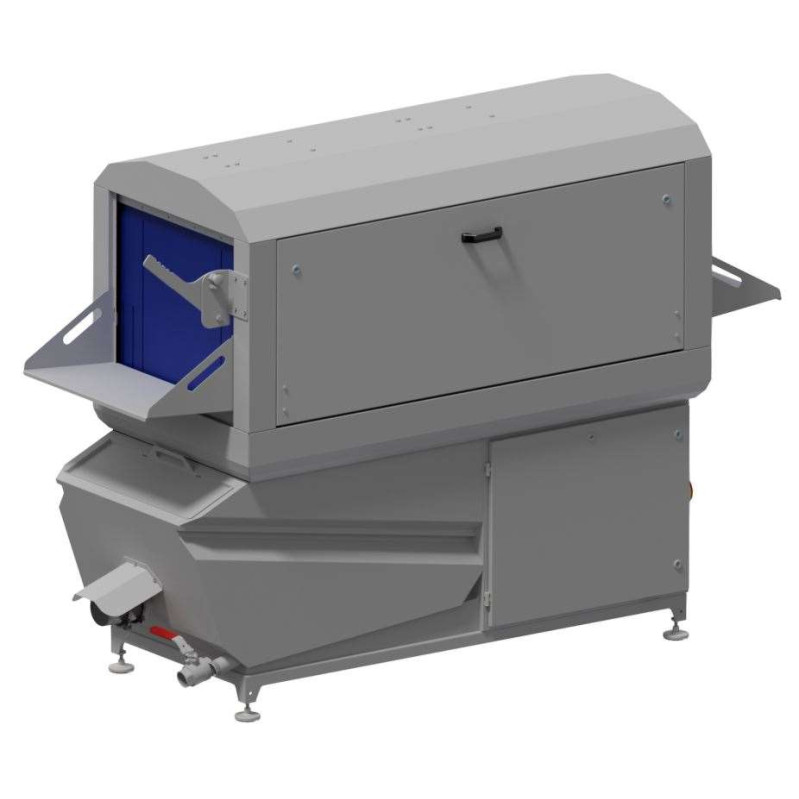

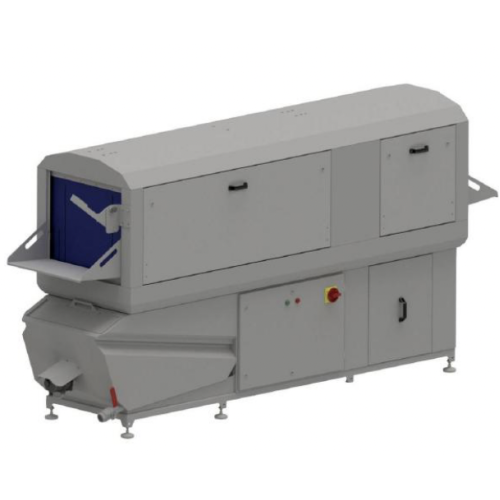

Crate Washer 250

Crate Washer 250

Compact conveying crate washing machine comes with integrated main wash and rinsing
zone, for fast and effective cleaning of slight to moderately contaminated plastic crates.

The unit is divided into a main wash and a rinsing zone. In the main wash zone the crates are cleaned with circulating water which is invariably kept at the desired temperature by the installed tank heater. The water of the main wash zone is constantly filtered by the filtration system. In the rinsing zone the crates are rinsed with clean fresh water and subsequently conducted into the tank of the main wash zone to be re-used. This procedure achieves superb wash results while minimizing water, energy, and chemical consumption.

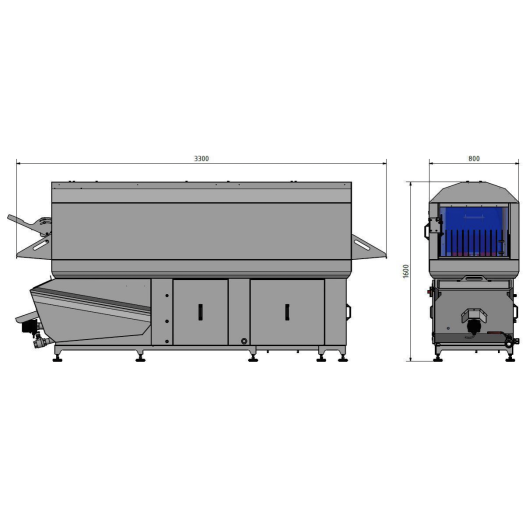

Following is the blow off zone that can be added to this piece of equipment. The crates are blown off with cold air from all sides by a high-pressure blower with high drying efficiency.

In order to ensure an optimal cleaning of all faces, the crates are transported by a conveyor chain at even distances through the unit; the installed rotatable Clip-eyelet flat nozzles ensure an efficient cleaning of the crates.

Specifications:

• Capacity: 250 per hour (step switch option allows 200-300 per hour)
• Stainless steel
• Washing temperature: 30- 55°C adjustable
• Rinsing temperature recommended: 50 - 85 °C (provision by the customer)
• Height adjustable

Options

• Drying module – Heating system with higher air blowers and uses electric energy
• Drying via centris - Pallet spinner to remove excess water with less energy consumption
• Water filtration
• Fume extraction exhaust system
• One-man operation
• With conveyor belts
• Dosing pump

*Can be customized according to customer requirements*
