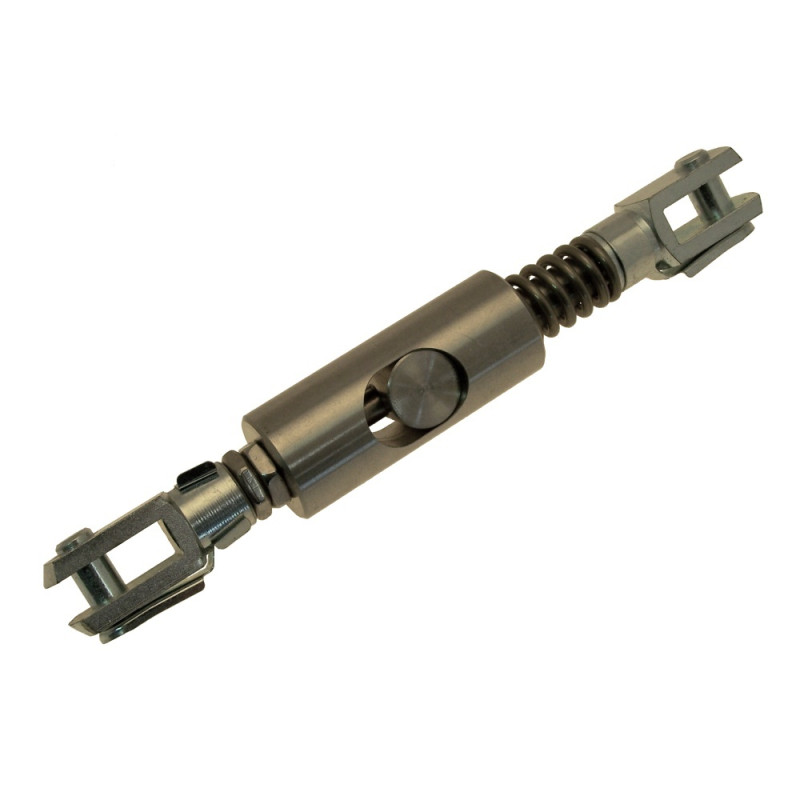

Compensator Unit Exploded View Ruhle IR 56 Meat Injector

Type: F42335
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1424

* Compensator Unit Exploded View IR 56:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Compensator Unit Exploded View Ruhle IR 56 Meat Injector

Type: F42335
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1424

* Compensator Unit Exploded View IR 56:
--F29334 Guide
-- F29330 Stop
--F29333 Bolt
--F20047 Hexagonal nut
--F29089 Fork head
--F244518 Locking pin
--F22617 Threaded pin
-- F22567 Pressure spring

Compensator Unit Exploded View for Ruhle IR 56 Meat Injector

Pos No.	Part No.	Description	Add Info	Required
1	F29334	Guide	Ø 30 x 74	1
2	F29330	Stop	M10 x Ø 20 x 22	1
3	F29333	Bolt	Ø 12 x100	1
4	F20047	Hexagonal nut	DIN439 M 10	2
5	F29089	Fork head	DIN71752 M10 x 20	2
6	F244518	Locking pin	ES-10 x 20-VZ	2
7	F22617	Threaded pin	DIN551 M 10 x 45	1
8	F22567	Pressure spring	3.0 x 20 x 30	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Compensator Unit Exploded View for Ruhle IR 56 Meat Injector

Pos No.	Part No.	Description	Add Info	Required
1	F29334	Guide	Ø 30 x 74	1
2	F29330	Stop	M10 x Ø 20 x 22	1
3	F29333	Bolt	Ø 12 x100	1
4	F20047	Hexagonal nut	DIN439 M 10	2
5	F29089	Fork head	DIN71752 M10 x 20	2
6	F244518	Locking pin	ES-10 x 20-VZ	2
7	F22617	Threaded pin	DIN551 M 10 x 45	1
8	F22567	Pressure spring	3.0 x 20 x 30	1
