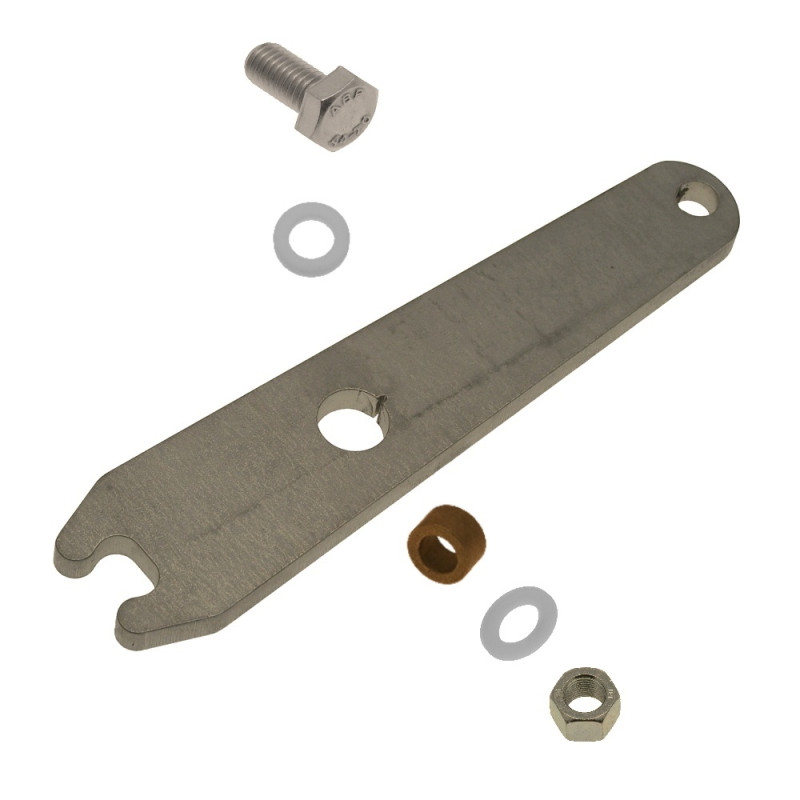

Fork Exploded View Ruhle IR56
Type: F42334
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1425
*
Fork Exploded View IR 56:
--F29086 Fork
--F20136 Slide bushing
--F20402 Hexagonal bolt
--F21307 Ring
--F29331 Ring
--F20147 Hexagonal nut
.
Fork Exploded View for Meat injector IR56
|
Pos No. |
Part No. |
Description |
Add Info |
Required |
 |
1 |
F29806 |
Fork |
194 x 44.1 x 8 |
1 |
 |
2 |
F20136 |
Slide bushing |
DIN1850 Ø 10 x Ø 16 x 10 |
1 |
 |
3 |
F20402 |
Hexagonal bolt |
DIN933 M10 x 30 |
1 |
 |
4 |
F21307 |
Ring |
Ø 10,2 x Ø 19 x 2 |
1 |
 |
5 |
F29331 |
Ring |
Ø 17,2 x Ø 30 x 3 |
1 |
 |
6 |
F20147 |
Hexagonal nut |
DIN934 M 10 |
1 |
.
