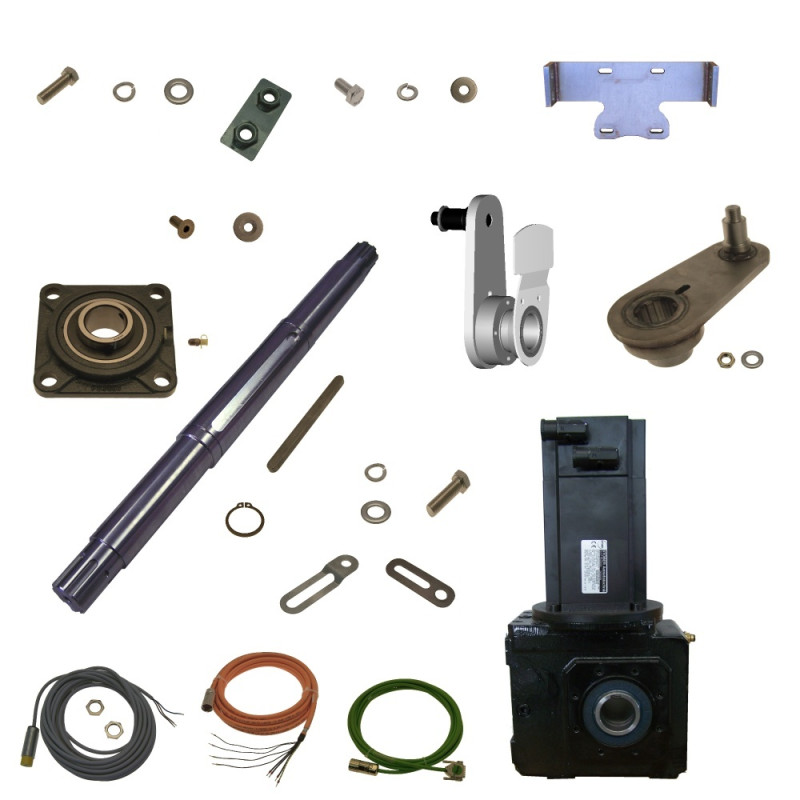

Drive Assembly Ruhle IR112 Injector
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F250335 | Drive Shaft | Ø 50 x 626 | 1 |
 |
2 | F252504 | Spring key | A 14 x 9 x 175 | 1 |
 |
3 | F21717 | Locking ring | DIN471 Ø 50 x 2 | 2 |
 |
4 | F248212 | Flange bearing | UCFS 309 | 2 |
 |
5 | F249954 | Bracket | 151,5 x 40 x 13 x 3 | 1 |
 |
6 | F250063 | Plate / Sheet | 114,5 x 35 x 3 | 1 |
 |
7 | F23713 | Washer | DIN125 A 17 | 7 |
 |
8 | F24015 | Spring lock washer | DIN127 B 16 | 8 |
 |
9 | F23786 | Hexagonal bolt | DIN933 M16 x 55 | 8 |
 |
10 | F449682 | Lever | IR 112 | 1 |
 |
11 | F456440 | Lever | IR 112 | 1 |
 |
12 | F249685 | Disc | Ø 11 x Ø 39 x 5 | 2 |
 |
13 | F20835 | Countersunk bolt | DIN7991 M10 x 25 | 2 |
 |
14 | F450073 | Torque support | IR 112 | 1 |
 |
15 | F24901 | Disc | Ø 12,5 x Ø 35 x 3 | 4 |
 |
16 | F20210 | Spring lock washer | DIN127 B 12 | 4 |
 |
17 | F21042 | Hexagonal bolt | DIN933 M12 x 30 | 4 |
 |
18 | F450077 | Starting sheet | IR 112 | 2 |
|
19 | F23713 | Washer | DIN125 A 17 | 4 |
|
20 | F24015 | Spring lock washer | DIN127 B 16 | 4 |
|
21 | F23786 | Hexagonal bolt | DIN933 M16 x 55 | 4 |
 |
22 | F247475 | Servo motor | S402 AGD-0350-EK703 | 1 |
 |
23 | F252478 | proximity switch | NI12U-M18-AP6X-7M | 1 |
 |
24 | F252053 | Power cable servo drive | 5m orange with 1 connector | 1 |
 |
25 | F252054 | Control cable servo drive | 5m green with 2 plugs | 1 |
