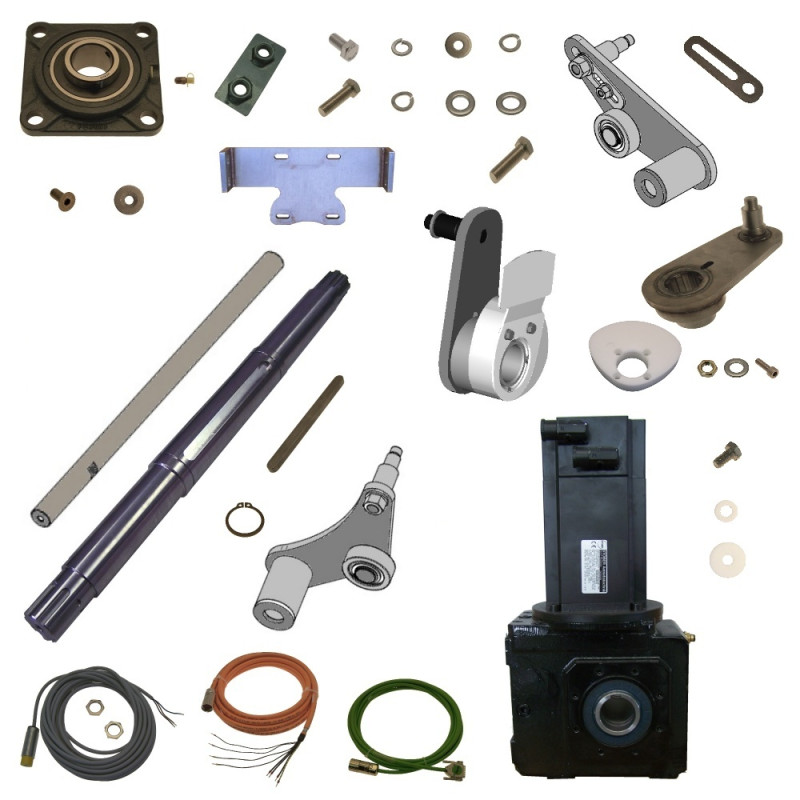

Drive Assembly Ruhle IR112 Injector

Type: F449469
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2145

* Drive Assembly IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Assembly Ruhle IR112 Injector

Type: F449469
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2145

* Drive Assembly IR 112:
--F250335 Drive Shaft
--F252504 Spring key
--F21717 Locking ring
--F248212 Flange bearing
--104570 Bracket
--F23713 Washer
--F24015 Spring lock washer
--F449682 Lever
--F456440 Lever
--F249685 Disc
--F249685 Disc
--F20835 Countersunk bolt
--F20835 Countersunk bolt
--F450073 Torque support
--F24901 Disc
--F20210 Spring lock washer
--F21042 Hexagonal bolt
--F450077 Starting sheet
--F23713 Washer
--F24015 Spring lock washer
--F23786 Hexagonal bolt
--F23786 Hexagonal bolt
--F249962 Shaft
--F20954 Hexagonal bolt
--F249960 Ring
--F450062 Lever
--F449955 Lever
--F249961 Ring
--F247475 Servo motor
--F252478 proximity switch
--F252053 Power cable servo drive
--F252054 Control cable servo drive

Drive Assembly Ruhle IR112 Injector

Pos No.	Part No.	Description	Add Info	Required
1	F250335	Drive Shaft	Ø 50 x 626	1
2	F252504	Spring key	A 14 x 9 x 175	1
3	F21717	Locking ring	DIN471 Ø 50 x 2	2
4	F248212	Flange bearing	UCFS 309	2
5	104570	Bracket	155 x 40 x 3	1
6	F23713	Washer	DIN125 A 17	7
7	F24015	Spring lock washer	DIN127 B 16	8
8	F23786	Hexagonal bolt	DIN933 M16 x 55	8
9	F449682	Lever	IR 112	1
10	F456440	Lever	IR 112	1
11	F249685	Disc	Ø 11 x Ø 39 x 5	2
12	F20835	Countersunk bolt	DIN7991 M10 x 25	2
13	F450073	Torque support	IR 112	1
14	F24901	Disc	Ø 12,5 x Ø 35 x 3	4
15	F20210	Spring lock washer	DIN127 B 12	4
16	F21042	Hexagonal bolt	DIN933 M12 x 30	4
17	F450077	Starting sheet	IR 112	2
18	F23713	Washer	DIN125 A 17	4
19	F24015	Spring lock washer	DIN127 B 16	4
20	F23786	Hexagonal bolt	DIN933 M16 x 55	4
21	F249962	Shaft	Ø 30 x 582	1
22	F20954	Hexagonal bolt	DIN933 M10 x 20	2
23	F249960	Ring	Ø 30,5 x Ø 60 x 6	2
24	F450062	Lever	IR 112	1
25	F449955	Lever	IR 112	1
26	F249961	Ring	Ø 11 x Ø 39 x 5	2
27	F249685	Disc	Ø 11 x Ø 39 x 5	2
28	F20835	Countersunk bolt	DIN7991 M10 x 25	2
29	F247475	Servo motor	S402 AGD-0350-EK703	1
30	F252478	proximity switch	NI12U-M18-AP6X-7M	1
31	F252053	Power cable servo drive	5m orange with 1 connector	1
32	F252054	Control cable servo drive	5m green with 2 plugs	1
