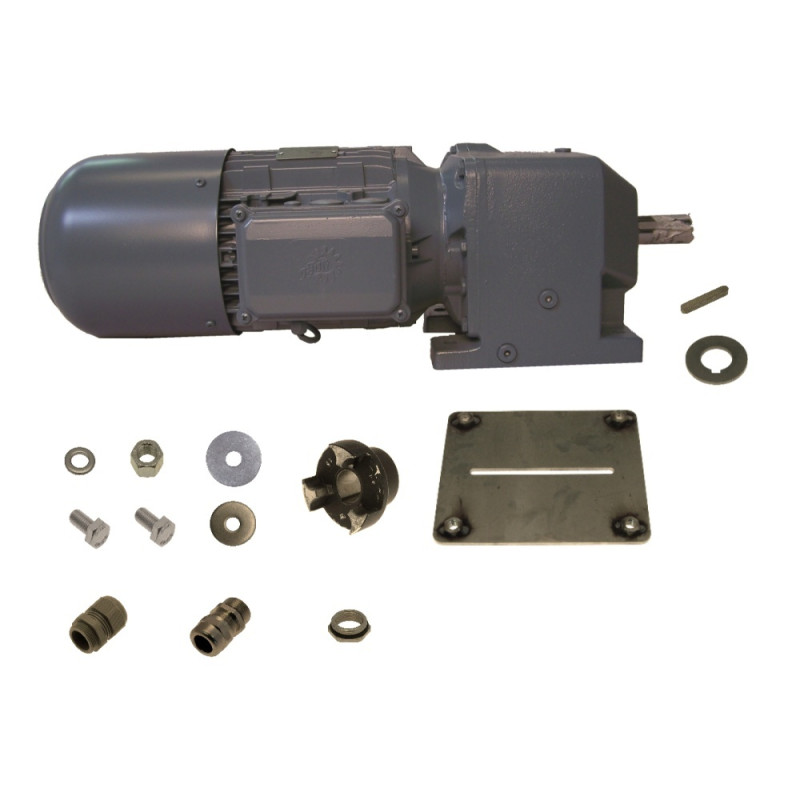

Drive Complete Ruhle SR3 Dicer No. 35 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F20831 | Spring key | A 8 x 7 x 50 | 1 |
 |
2 | F28699 | Disc | Ø 30,2 x Ø 60 x 5 | 4 |
 |
3 | F28218b | Coupling hub | Ø 30 x Ø 85 x 64 | 1 |
 |
4 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 1 |
 |
5 | F22138 | Hexagonal bolt | DIN933 M10 x 25 | 1 |
|
6 | F20588 | Hexagonal bolt | DIN933 M10 x 40 | 4 |
 |
7 | F27693 | Washer | DIN125 A 10,5 | 4 |
 |
8 | F42318 | Starting sheet | SR 3 | 1 |
 |
9 | F20259 | Hexagonal nut | DIN934 M 8 | 1 |
 |
10 | F20806 | Disc | Ø 8,5 x Ø 30 x 3 | 1 |
 |
11 | 102160 | Gear motor with break | SK472-100L/40-20Bre40, i=10,45 | 1 |
 |
12 | F29057 | Cable gland | M 25 x 1.5 | 1 |
 |
13 | 104152 | Cable gland | PERFECT-KV-EMV M20x1.5 | 1 |
 |
14 | 104154 | Reducing adapter | MS-Reduktion M25/M20x1,5 | 1 |
