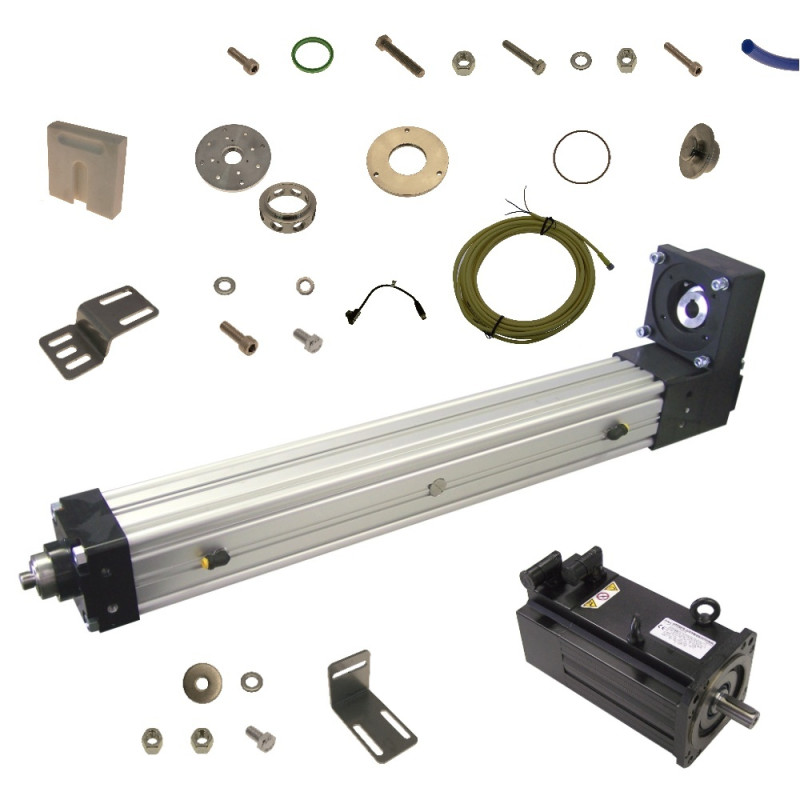

Servo Drive Complete Ruhle SR3 No. 35 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 104739et | Servo spindle drive | SR 3 | 1 |
 |
2 | 102785 | Flange | SR 3 Servo | 1 |
 |
3 | F22141 | Cylinder head screw | DIN912 M10 x 25 | 4 |
 |
4 | F247632 | Scraper | Ø 50 x Ø 58 x 6 | 2 |
 |
5 | F22193 | Hexagonal bolt | DIN933 M14 x 80 | 4 |
 |
6 | F20205 | Hexagonal nut | DIN934 M 14 | 4 |
 |
7 | F252373 | Hexagonal bolt | DIN933 M12 x 70 | 4 |
 |
8 | F20202 | Washer | DIN125 A 13 | 4 |
|
9 | F20204 | Hexagonal nut | DIN934 M 12 | 4 |
 |
10 | F247820 | Flange | Ø 53 x Ø 115 x 10 | 1 |
 |
11 | F22986 | O-ring | Ø 85 x 3 | 1 |
 |
12 | F21429 | Cylinder head screw | DIN912 M 6 x 60 | 3 |
 |
13 | 104725 | Hose | Ø 8 x 1 | 1000mm |
|
14 | 104725 | Hose | Ø 8 x 1 | 600mm |
 |
15 | F254839 | Housing | Ø 80 x 51 | 1 |
 |
16 | F26931 | Plunger SR2/T-SR3 | 119 x 119 x 25 | 1 |
 |
17 | 107080 | Hall-Effekt Sensor | SMC-1PC | 2 |
 |
18 | 107081 | Kabel zu Hall-Effekt Sensor | PVC 3 x 0,2mm², geschirmt | 2 |
