Drive Exploded View SR2 Dicer No. 249 and Higher

Type: F441364ex
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 838
* Drive Exploded View SR2-Turbo No. 249 and higher:

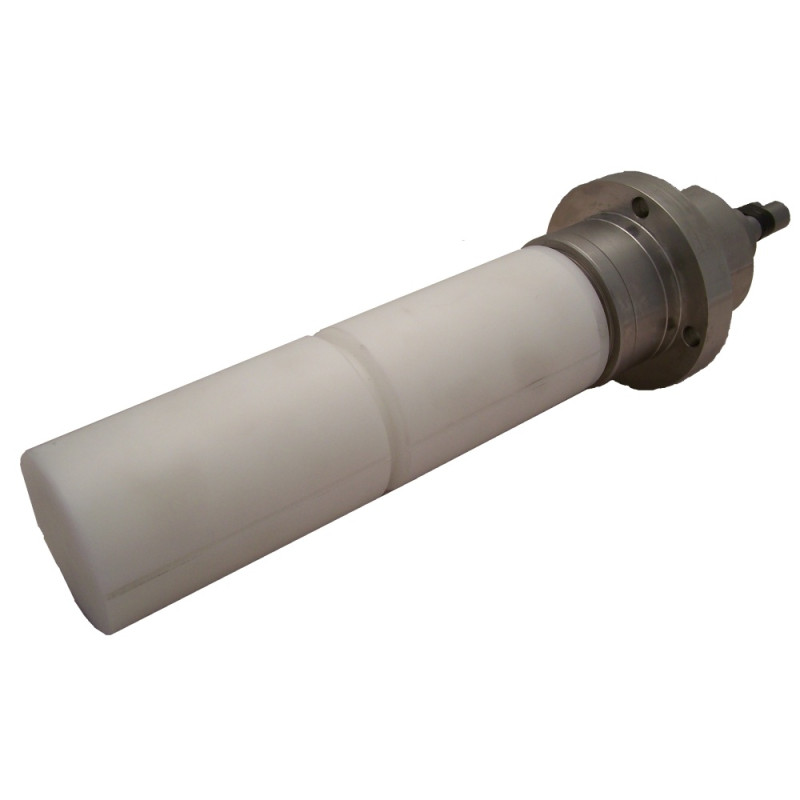

Drive Exploded View for Ruhle SR2 Turbo Dicer

  Pos No. Part No. Description Add Info Required
F26809 1 F26809 Housing Ø 120 x 111,5 1
F23386 2 F23386 Tapered ball bearing DIN628 - 3207 2RS 2
F26811 3 F26811 Ring Ø 35,5 x Ø 45 x 40,5 1
F26814 4 F26814 Take-up ring Ø 50 x Ø 72 x 20 1
F240658 5 F240658 Ring Ø 18 x Ø 40 x 20 1
F28057 6 F28057 Radial shaft seal Ø 50 x Ø 65 x 8 2
F26813 7 F26813 Disc Ø 55 x Ø 71 x 2 1
F240655 8 F240655 Drive Shaft Ø 50 x 350 1
F240654 9 F240654 Bushing Ø 80 x 267 1
F22915 10 F22915 Spring key A 6 x 6 x 40 1
