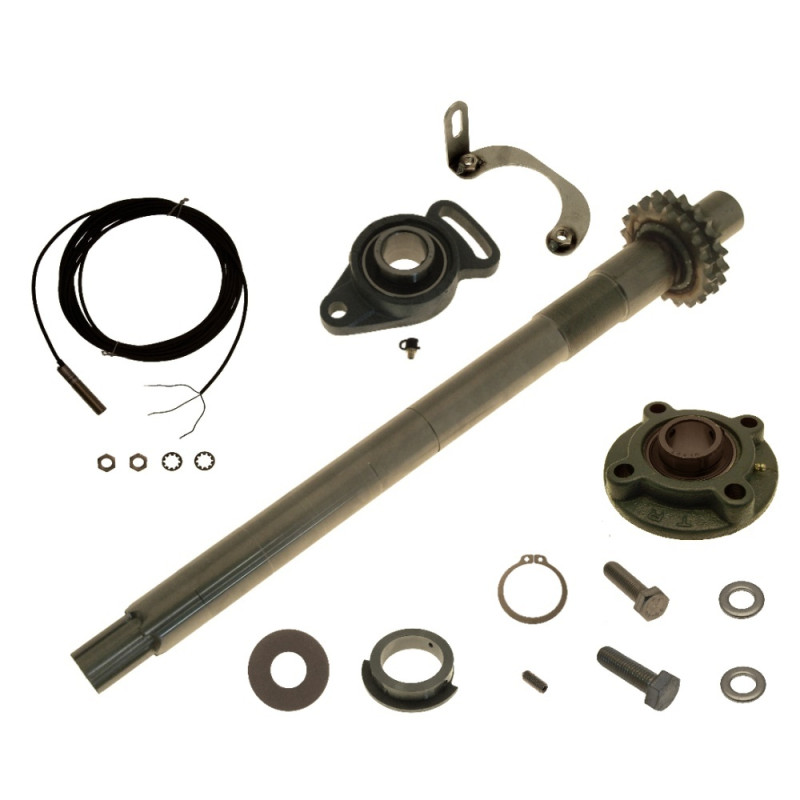

Drive Shaft Complete SR3 Dicer with No. 70 and Higher
| Pos No. | Part no. | Description | Add Info | Required | |
 |
1 | F26883 | Flange bearing | UCFC 207 | 2 |
 |
2 | F20202 | Washer | DIN125 A 13 | 4 |
 |
3 | F23234 | Hexagonal bolt | DIN933 M12 x 45 | 6 |
 |
4 | F451165 | Drive shaft | SR 3 Servo | 1 |
 |
5 | F20263 | Locking ring | DIN471 Ø 35 x 1,5 | 1 |
|
6 | F27693 | Washer | DIN125 A 10,5 | 4 |
 |
7 | F22919 | Hexagonal bolt | DIN933 M10 x 45 | 4 |
 |
8 | F28222 | Flange bearing | UCFA 207 | 1 |
 |
9 | F28551 | Disc | Ø 13 x Ø 30 x 5 | 2 |
 |
10 | F41764 | Pulse generator | SR 3 | 1 |
 |
11 | F21948 | Threaded pin | DIN914 M 6 x 16 | 1 |
 |
12 | F41765 | Bracket | SR 3 | 1 |
 |
13 | F27081 | proximity switch | KIN-M12PS/004 KL6 | 1 |
