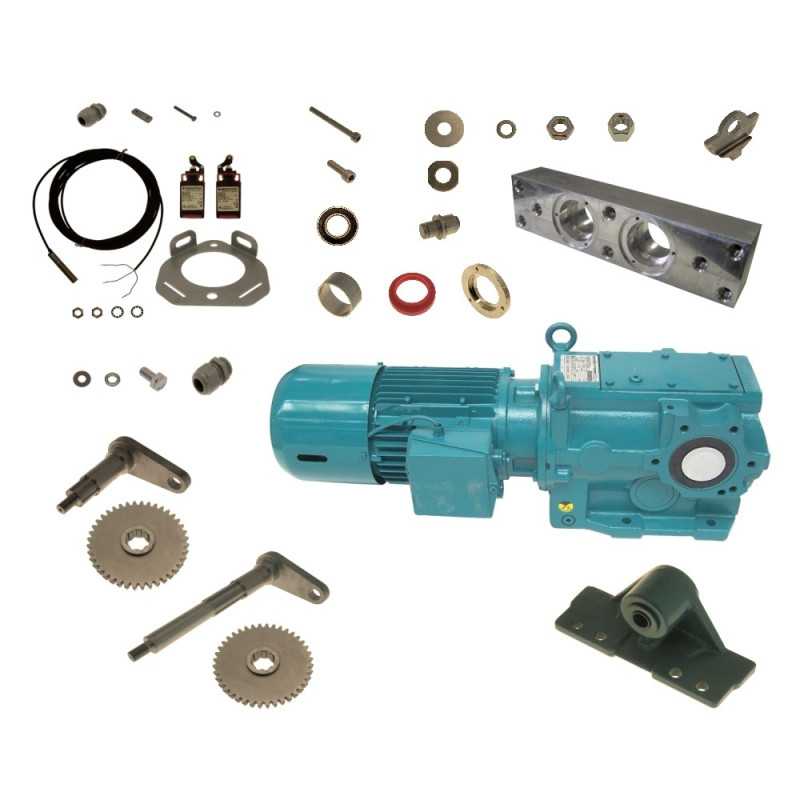

Duct Lock Complete 2 Ruhle SR3 Dicer F41852

Type: F41852
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1041

Note: Shipping to be Determined.

* Duct Lock Complete 2 SR3 Lifting unit for No. 70 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Duct Lock Complete 2 Ruhle SR3 Dicer F41852

Type: F41852
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1041

Note: Shipping to be Determined.

* Duct Lock Complete 2 SR3 Lifting unit for No. 70 and higher:
--F28501 Housing
--F20842 Tapered ball bearing
-- F28503 Spacers
-- F28499 Scraper
--F27103 Disc
-- F22068 Cylinder head screw
--F20796 Cylinder head screw
-- F28507 bolt
--F28490 Nut
--F41886 Signal plate
-- F26798 Disc
--F20543 Washer
--F26897 Hexagonal nut
--F20450 Hexagonal nut
--104729 bracket with cable
--F28551 Disc
--F20202 Washer
--F20323 Hexagonal bolt
--106655 Lever
--F28547 Gear motor with break
--F29058 Cable gland

Duct Lock Complete 2 Ruhle SR3 Dicer F41852

Pos No.	Part No.	Description	Add Info	Required
1	F28501	Housing	500 x 120 x 90	1
2	F20842	Tapered ball bearing	DIN628 - 3209 2RS	4
3	F28503	Spacers	Ø 45,5 x Ø 50 x 24,5	2
4	F28499	Scraper	55 x 80 x 16	2
5	F27103	Disc	Ø 115 x 16	2
6	F22068	Cylinder head screw	DIN912 M 6 x 12	6
7	F20796	Cylinder head screw	DIN912 M10 x 80	8
8	F28507	bolt	Ø 35 x 57	2
9	F28490	Nut	M 20 x 1,5 x Ø 40 x 7	2
10	F41886	Signal plate	SR 3	1
11	F26798	Disc	Ø 20,5 x Ø 60 x 5	2
12	F20543	Washer	DIN125 A 21	1
13	F26897	Hexagonal nut	DIN439 M 20 x 1,5	3
14	F20450	Hexagonal nut	DIN934 M 20 x 1,5	1
15	104729	bracket with cable	SR 3	1
16	F28551	Disc	Ø 13 x Ø 30 x 5	2
17	F20202	Washer	DIN125 A 13	2
18	F20323	Hexagonal bolt	DIN933 M12 x 25	2
19	106655	Lever	SR 3	1
20	F28547	Gear motor with break	SKZH34C90-WU-DA90LK-H-4G-BK-L4	1
21	F29058	Cable gland	M 20 x 1.5	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Duct Lock Complete 2 Ruhle SR3 Dicer F41852

Pos No.	Part No.	Description	Add Info	Required
1	F28501	Housing	500 x 120 x 90	1
2	F20842	Tapered ball bearing	DIN628 - 3209 2RS	4
3	F28503	Spacers	Ø 45,5 x Ø 50 x 24,5	2
4	F28499	Scraper	55 x 80 x 16	2
5	F27103	Disc	Ø 115 x 16	2
6	F22068	Cylinder head screw	DIN912 M 6 x 12	6
7	F20796	Cylinder head screw	DIN912 M10 x 80	8
8	F28507	bolt	Ø 35 x 57	2
9	F28490	Nut	M 20 x 1,5 x Ø 40 x 7	2
10	F41886	Signal plate	SR 3	1
11	F26798	Disc	Ø 20,5 x Ø 60 x 5	2
12	F20543	Washer	DIN125 A 21	1
13	F26897	Hexagonal nut	DIN439 M 20 x 1,5	3
14	F20450	Hexagonal nut	DIN934 M 20 x 1,5	1
15	104729	bracket with cable	SR 3	1
16	F28551	Disc	Ø 13 x Ø 30 x 5	2
17	F20202	Washer	DIN125 A 13	2
18	F20323	Hexagonal bolt	DIN933 M12 x 25	2
19	106655	Lever	SR 3	1
20	F28547	Gear motor with break	SKZH34C90-WU-DA90LK-H-4G-BK-L4	1
21	F29058	Cable gland	M 20 x 1.5	2
