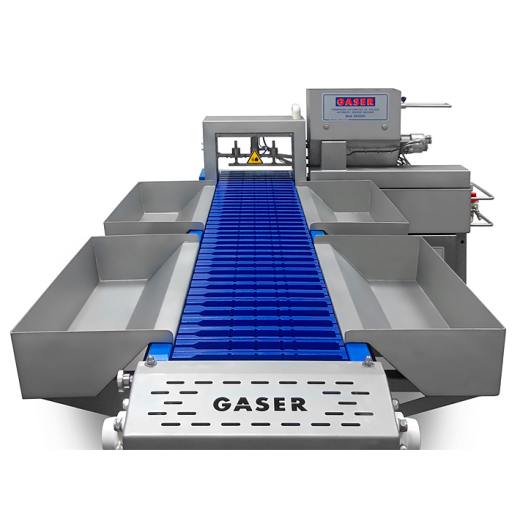

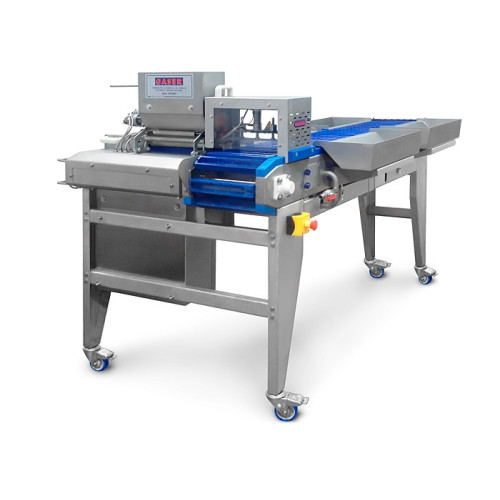

The Spanish-engineered Gaser SK-8000 Automatic Skewer Machine represents the pinnacle of automated food presentation, meticulously engineered to optimize industrial souvlaki, satay, and souvlaki lines. If your processing facility, meat plant, or ready-meal commissary is searching for an autonomous high-capacity skewer machine or looking to deploy a premier automated horizontal kebab machine asset, this robust platform delivers elite processing yields. Designed to handle single or multi-ingredient formulas seamlessly—including alternating meats, fish, vegetables, and fruits—the SK-8000 drives production volumes up to an impressive 1,500 units per hour. By pairing a continuous, extended manual-load conveyor tracking loop with a powerful pneumatic skewering block, it eliminates manual threading labor while securing exceptional weight uniformity and clean stick alignment across demanding multi-shift runs.
The SK-8000 framework is engineered for up to four employees running simultaneously (comfortably situated with two workers positioned on each side of the machine). Outfitted with an elongated conveyor track, this continuous belt grants ample space for workers to successively layer distinct raw components into the passing mold cavities according to the active traveling belt speed, enabling intricate multi-ingredient kebab configurations.
| Maximum Volumetric Output Speed | Up to 1,500 units / hour | 25 units / minute (Paced by employee manual loading speed) |
| Compatible Wood/Bamboo Skewer Sizes | Length: 120 mm to 330 mm • Diameter: 3.8 mm (Straight point-tip profiles recommended) |
| Maximum Finished Product Length | Standard chamber mold fits food assemblies up to 220 mm long |
| Product Dicing & Portion Constraints | Maximum block footprint: 30 × 30 × 30 mm (Accommodates 2-3 mm variances; market average: 22-35 mm) |
| Required Pneumatic Connection | Constant Compressed Air Supply at 6 Bar Pressure |
| Operational Volumetric Air Flow | 20 Liters / minute continuous consumption |
| Electrical Power & Network Profile | 400 Watts | 230V • 50/60Hz Network Input |
| Machine Physical Size (L × W × H) | 2100 × 1130 × 1320 mm |
| Equipment Structural Net Weight | 175 kg (~385.8 lbs.) High-Stability Mechanical Footprint |
* Note: For optimal mechanical feed tracking and low structural friction loops, standard straight point-tip skewers are heavily recommended. Gun-type or paddle-type skewers cannot be adjusted or fed through the automated guide block assembly.
