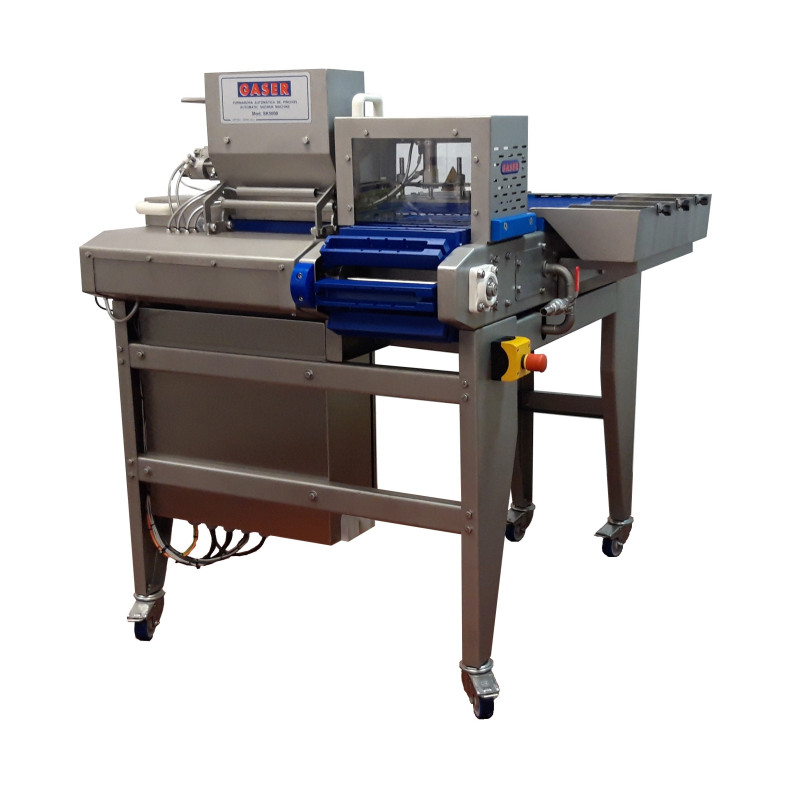

Automatic Skewer Machine SK-5000

Type: for single ingredients
Country of Origin: Spain
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 54 X 47 X 54
Shipping Weight: 441 lbs
CM: 7263
Financing Available
Note: Price subject to change without notice

Gaser SK-5000 Automatic Skewer Machine

Specifications:

  • Completely autonomous machine.
  • Made of stainless steel.
  • Ideal for 1 ingredient
  • Can produces up to 1500 units per hour – 25 units per minute.
  • The machine is fed by the workers, therefore the output speed depends on the speed they work at
  • Standard mold can fit products up to 220mm in length
  • Can use skewers from 120-330mm long with a diameter of 3.8mm
  • Standard point tip skewers are recommended for minimal friction
  • Adjustable skewer length but only for straight skewers (not gun type)
  • Separators are used to limit the length of product in the mold chamber, as well as pushing the product together as the skewer enters.
  • The maximum dice/portion that can be used is a 30x30x30mm, but the machine will be able to adjust if it is a little bit bigger such as 2-3 millimeters more
  • The average market measurements are 22- and 35-mm meat dices.
  • Automatic cleaning

Technical Characteristics:

  • Pneumatic operation at 6 bars (kg/cm2)
  • Air consumption 20 liters / minute
  • Electrical power: 400W
  • Electric current 230V, 50/60Hz
  • Dimensions: 1305 × 1130 × 1320 mm
  • Net weight: 120 kg



Note: Ideal for two employees one on each side
