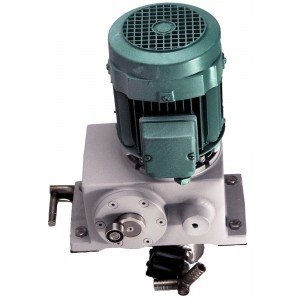

Gear Box Complete Ruhle PR15 Meat Injector
Type: F41736
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1984
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1984
Gear Box Complete Ruhle PR15 Injector
| Pos No. | Parts No. | Description | Add Info | Required | |
 |
1 | F20048 | Countersunk bolt | DIN7991 M 6 x 16 | 1 |
 |
2 | F20192 | Shaft | Ø 35 x 237 | 1 |
 |
3 | F20194 | Worm wheel | Z 24 m 4,0 | 1 |
 |
4 | F20200 | Flange | Ø 30,5 x Ø 120 x 35 | 1 |
 |
5 | F20201 | Bracket | 198,2 x 88,1 x 30 x 15 | 1 |
 |
6 | F20202 | Washer | DIN125 A 13 | 5 |
 |
7 | F20203 | Hexagonal nut | DIN934 M 6 | 4 |
|
8 | F20204 | Hexagonal nut | DIN934 M 12 | 5 |
|
9 | F20207 | Countersunk bolt | DIN7991 M 8 x 25 | 12 |
 |
10 | F20210 | Spring lock washer | DIN127 B 12 | 4 |
 |
11 | F20211 | Grooved ball bearing | DIN625 - 4206 | 1 |
 |
12 | F20213 | Tapered ball bearing | DIN628 - 3204 | 1 |
 |
13 | F20214 | Slide bushing | DIN1850 Ø 15 x Ø 20 x 15 | 1 |
 |
14 | F20217 | Locking ring | DIN471 Ø 30 x 1,5 | 1 |
 |
15 | F20222 | Spring key | A 6 x 6 x 16 | 1 |
 |
16 | F20223 | Spring key | A 8 x 7 x 30 | 1 |
 |
17 | F20225 | stud screw | DIN835 M 8 x 38 | 4 |
 |
18 | F20227 | Threaded pin | DIN914 M 8 x 16 | 1 |
 |
19 | F20229 | Hexagonal bolt | DIN933 M12 x 60 | 2 |
 |
20 | F20230 | Hexagonal bolt | DIN933 M12 x 40 | 2 |
|
21 | F20259 | Hexagonal nut | DIN934 M 8 | 4 |
 |
22 | F20208 | Countersunk bolt | DIN7991 M 8 x 20 | 1 |
|
23 | F21260 | Spring lock washer | DIN127 B 8 | 4 |
 |
24 | F21309 | Radial shaft seal | Ø 30 x Ø 40 x 7 | 1 |
 |
25 | F21345 | Radial shaft seal | Ø 35 x Ø 47 x 7 | 1 |
|
26 | F22888 | Washer | DIN125 A 8,4 | 4 |
 |
27 | F22943 | Threaded pin | DIN551 M 6 x 30 | 4 |
|
28 | F24031 | Spring lock washer | DIN127 B 6 | 4 |
 |
29 | F25272 | bushing | M 26 x 1,5 x Ø 50 x 15 | 1 |
 |
30 | F25274 | Worm | Ø 24 x Ø 58 x 65 | 1 |
 |
31 | F26569 | Grooved ball bearing | DIN625 - 6203 1Z | 1 |
 |
32 | F27669 | bolt | SW 19 x 53,8 | 1 |
 |
33 | F27788 | Tapered ball bearing | DIN628 - 3201 2RS | 1 |
 |
34 | F28160 | Flange | Ø 35 x Ø 120 x 35 | 1 |
 |
35 | F28327 | Disc | Ø 10,5 x Ø 34,5 x 2,5 | 1 |
 |
36 | F257892 | Plate | 170 x 50 x 2.3 | 2 |
 |
37 | F28643 | Gear box PR 9/10/15 empty | 304 x 198 x 151,7 | 1 |
 |
38 | F10002 | Oil | BMB 220 graphite additive | 0.4 l |
 |
39 | F10140 | Low-viscosity grease | Low-viscosity grease | 1.5 l |
 |
40 | F40029 | Eccentric tappet | PR 8 - 20 | 1 |
 |
41 | F40031 | Forward feed | PR 8 - 15 | 1 |
 |
42 | F40254 | Impeller pump | PR 8 - 20 | 1 |
 |
43 | F41082 | Lever | PR 8 - 20 | 1 |
 |
44 | F20199 | Capstan nut | M 22 x 1.5 | 1 |
|
45 | F25432 | Threaded pin | DIN914 M 6 x 10 | 1 |
 |
46 | F24901 | Washer | Ø 12,5 x Ø 35 x 3 | 1 |
 |
47 | F20276 | Gear motor | LS90ST | 1 |
