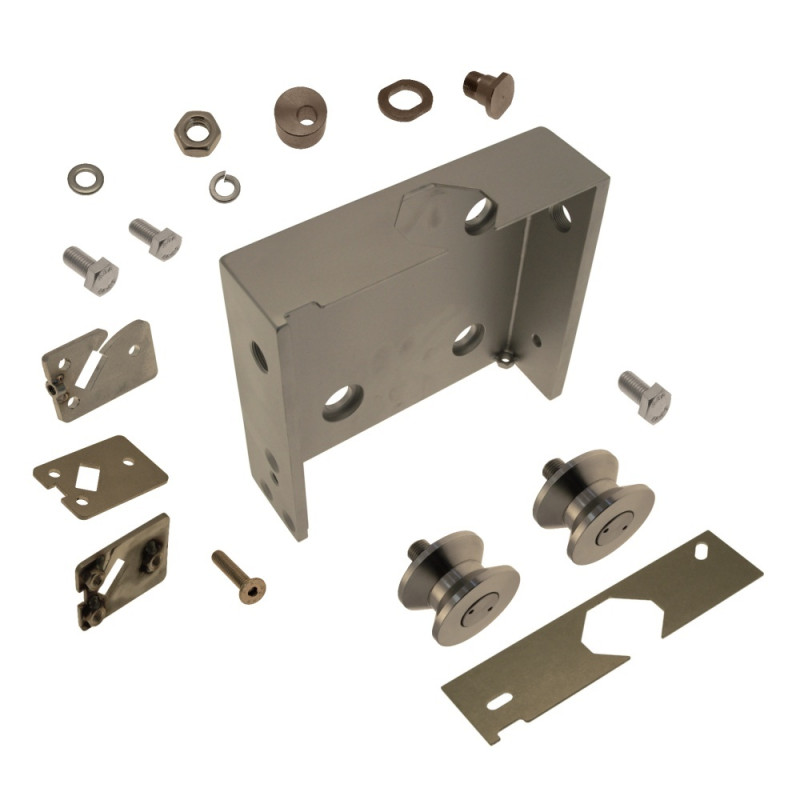

Guide Complete for Ruhle SR2 Turbo Meat Dicer No. 249 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F441318 | Cover | SR 2 Turbo | 1 |
 |
2 | 101191 | Rolle | SR 2 Turbo | 2 |
 |
3 | 101192 | Rolle | SR 2 Turbo | 2 |
 |
4 | F240594 | Disc | Ø 22,2 x Ø 36 x 5 | 4 |
 |
5 | F26720 | Cap nut | DIN917 M 20 | 4 |
 |
6 | F26379 | Spring lock washer | DIN127 B 10 | 2 |
 |
7 | F241356 | Eccentric tappet | Ø 11 x Ø 30 x 12 | 2 |
 |
8 | F22138 | Hexagonal bolt | DIN933 M10 x 25 | 2 |
 |
9 | F241355 | Bolt | Ø 32 x 33 | 2 |
 |
10 | F441354 | Starting sheet | SR 2 Turbo | 1 |
 |
11 | 103356 | Starting sheet | SR 2 Turbo | 1 |
 |
12 | F241351 | Plate / Sheet | 79 x 54 x 4 | 1 |
 |
13 | F20834 | Countersunk bolt | DIN7991 M 8 x 35 | 3 |
 |
14 | F241239 | Plate / Sheet | 236 x 61 x 2,5 | 1 |
 |
15 | F22888 | Washer | DIN125 A 8,4 | 2 |
|
16 | F20267 | Hexagonal bolt | DIN933 M 8 x 10 | 1 |
|
17 | F21281 | Hexagonal bolt | DIN933 M 8 x 16 | 1 |
