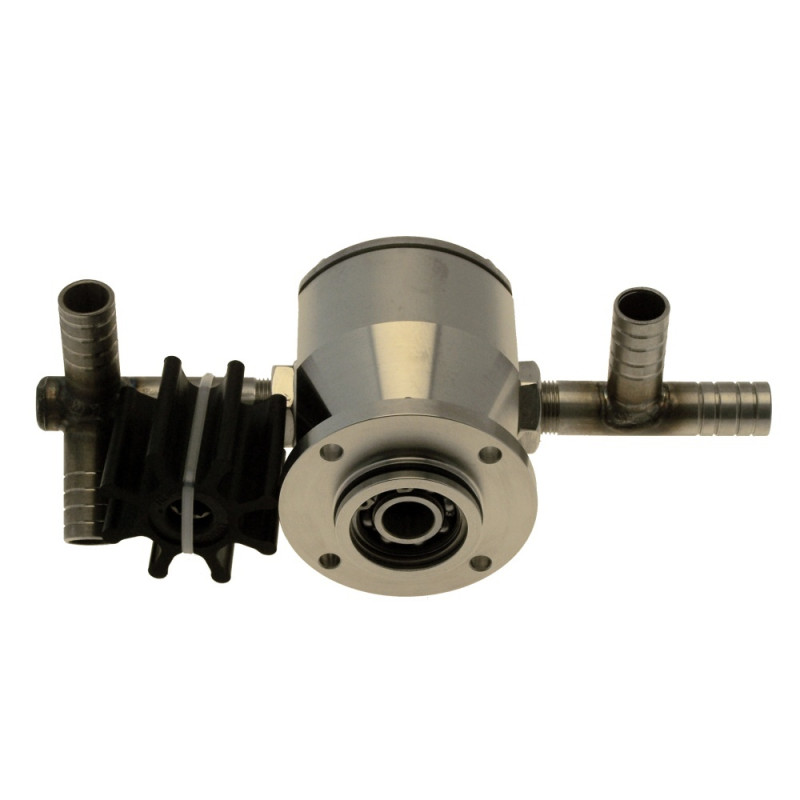

Impellerpumpe Exploded View Ruhle PR20 Injector No. 2786 and Higher
- Stock: On order
- Brand: Ruhle
- Type: F40254
Impeller Pump Exploded View Ruhle PR20 Injector No. 2786 and Higher
| Pos No. | Part No. | Description | Add Info. | Required | |
 |
1 | F247398 | Housing | Ø 16,4 x Ø 89 x 97,8 | 1 |
 |
2 | F20162 | Radial-Wellendichtring | Ø 16 x Ø 28 x 7 | 1 |
 |
3 | F20160 | Sicherungsring | DIN472 Ø 30 x 1,2 | 1 |
 |
4 | F28028 | Radial-Wellendichtring | DIN472 Ø 30 x 1,2 | 1 |
 |
5 | F26569 | Rillenkugellager | DIN625 - 6203 1Z | 1 |
 |
6 | F20159 | Sicherungsring | DIN472 Ø 40 x 1,75 | 1 |
 |
7 | F20157 | O-Ring | Ø 42 x 2,5 | 1 |
 |
8 | F20155 | Impeller M 401 | M401 | 1 |
 |
9 | F20158 | O-Ring | Ø 65 x 1,8 | 1 |
 |
10 | F248182 | Lid | Ø 90 x 4 | 1 |
 |
11 | F20163 | Hexagonal bolt | DIN933 M 5 x 12 | 4 |
 |
12 | F447402 | Tube | PR 8 - 20 | 1 |
 |
13 | F447399 | Tube | PR 8 - 20 | 1 |
 |
14 | F26897 | Hexagonal nut | DIN439 M 20 x 1,5 | 2 |
