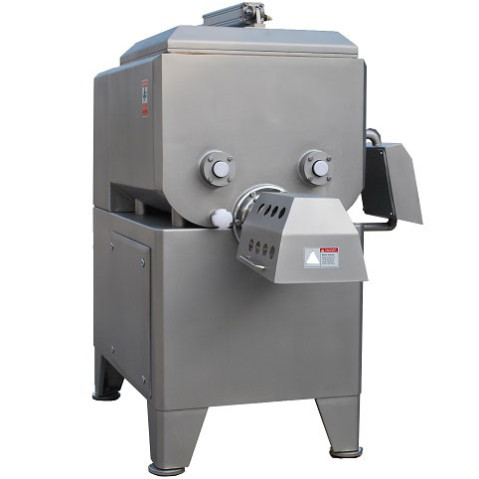

Commercial Mixer Grinder 300L / CM160
The industrial-grade Industrial meat mixer grinder 300L is a premier, dual-function processing workhorse engineered to execute uniform material blending and high-torque particle reduction within a single automated floor footprint. If your meat processing plant, supermarket commissary, or commercial production facility is tracking down a high-yield commercial mixer grinder combo near me or looking to deploy an advanced CM160 mixer grinder, this all-in-one system provides exceptional operational versatility. Outfitted with a spacious 330L total volumetric capacity hopper and a heavy-duty 160mm grinder plate array, it blends bulk formulas seamlessly before feeding them cleanly through a variable-speed grinding auger. This smart, consolidated loop prevents heat buildup, blocks cellular product smearing, manages fat-to-lean batch distribution perfectly, and delivers a superb final product texture over demanding multi-shift runs.
- Advanced PLC & Touchscreen HMI: Integrated with a highly responsive programmable logic controller (PLC) and smart operator touchscreen interface for fast recipe call-ups and seamless monitoring.
- VSD Variable Speed Control: Equipped with Variable Speed Drives (VSD) on the grinding auger, giving operators exact control to match rotational velocity perfectly to raw material density.
- Dual-Motor Mixing Paddle Assembly: Driven by two independent 1.5 kW motors that rotate paddles at a uniform 37 rpm to ensure a completely homogeneous blend before a grind pass.
- 100% Stainless Steel Build: Fabricated entirely from heavy, food-grade stainless steel plates with smooth, radius corners to facilitate lightning-fast sanitation and daily washdowns.
- Optimal Discharge Clearance: Features a comfortable 750 mm height clearance between the discharge throat and the floor, pairing perfectly with standard 200L meat buggies and dump steps.
| Hopper Processing Capacity | 300 Liters (Supports up to 330L total volumetric block batches) |
| Grinder Plate Diameter Size | 160 mm Master Grinding Plate Assembly |
| Main Auger Motor Drive | 18.5 kW High-Torque Grinding Power with VSD control |
| Auger Rotation Velocity | Fully Variable Speed Track |
| Independent Mixing Motor Power | 3.0 kW Total (Dual 1.5 kW Motor Drives running in tandem) |
| Mixing Paddle Velocity | 37 rpm Steady Homogeneous Speed |
| Discharger-to-Ground Clearance | 750 mm |
| Electrical Rated Load Current | 30 A Base Operating Circuit Draw |
| Machine Dimensions (L x W x H) | 1740 mm × 1170 mm × 1700 mm |
| Control System Logic Architecture | Automated PLC & Integrated Touchscreen HMI System Screen |
⚙️ Premium Global Component Sourcing
To secure zero plant downtime and unparalleled mechanical longevity, this equipment is engineered using top-tier components from internationally recognized premium suppliers.
* Note: Features a highly optimized ergonomic framework engineered for hassle-free installation and quick, toolless disassembly. The open sanitation profile leaves no hidden spots for product tracking, ensuring swift, complete compliance with strict plant hygiene inspections.
