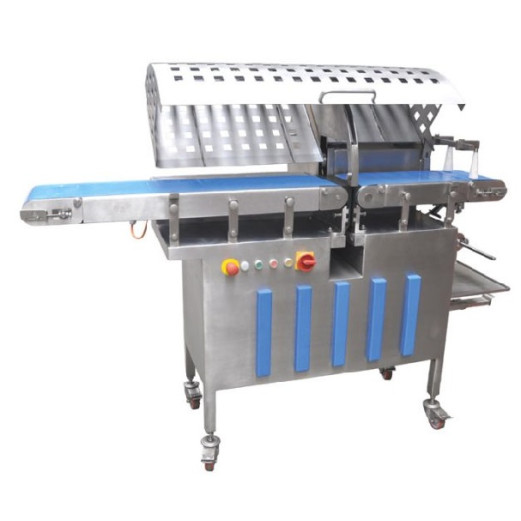

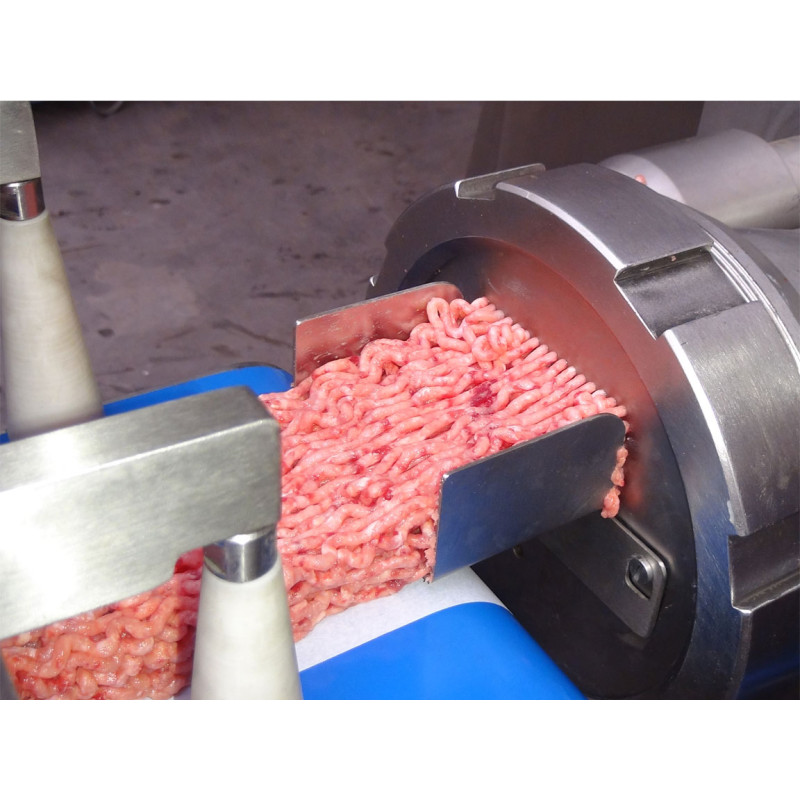

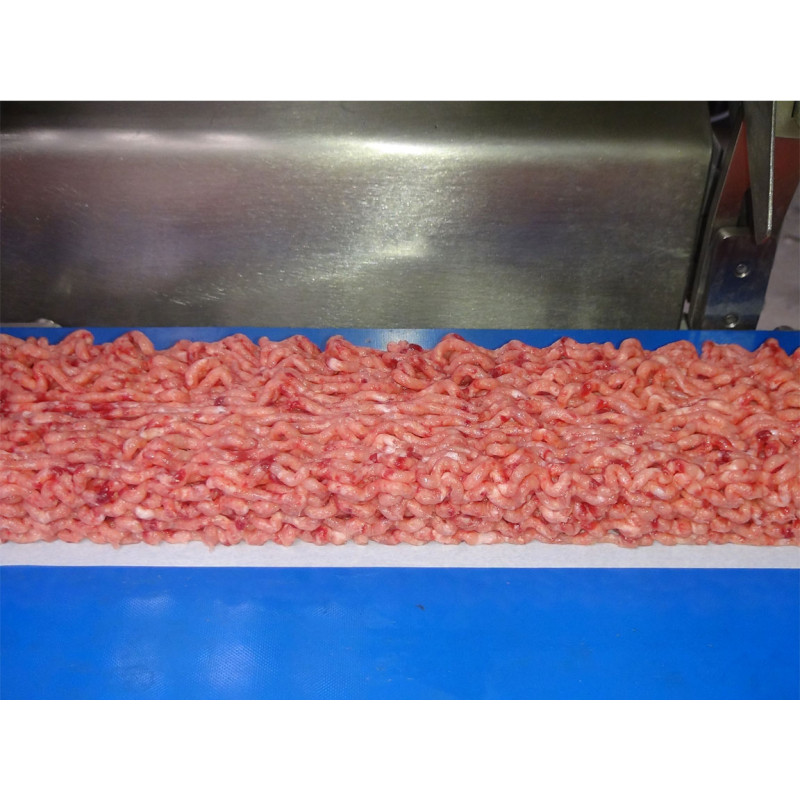

The European-engineered Portioning Device PSS PD 240 represents a state-of-the-art automated sizing solution distributed exclusively to upgrade industrial meat room outputs. If your processing facility is source-matching premium meat portioners in Canada, evaluating a high-precision commercial portioning device near me, or deploying an elite portioning control device in Canada, this high-speed line asset offers unprecedented batch accuracy. Built to run inline with continuous systems, this premium automatic portioning machine in Ontario Canada handles beef, pork, poultry, and custom ground formulations seamlessly. Operating with a maximum weight deviation of just +/- 1%, it cleanly cuts extruded minced rows onto underlay paper rolls, ensuring an impeccable brick geometry that is immediately optimized for automated retail tray-sealing placement.
| Operational Application Range | High-accuracy minced meat line portioning (Beef, Pork, Poultry, Mixed) |
| Maximum Processing Capacity | Max. 130 pieces / minute |
| Target Weight Sizing Bounds | 300 g to 1,500 g Portions |
| Maximum Weight Deviation | ± 1% High-Precision Threshold |
| Portion Dimensions Scope | Width: Bound by paper width | Length: Adjustable as needed | Height: 30 – 150 mm |
| Paper Reel Sizing Compatibility | Conveyor paper in rolls • Width: 110 mm to 240 mm |

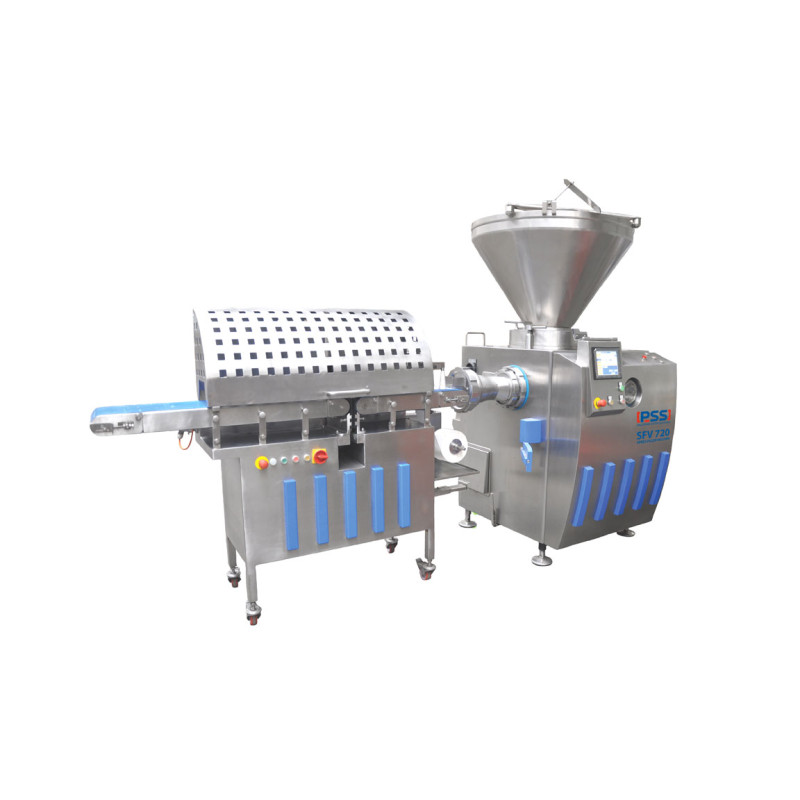

| Equipment Connectivity Support | All PSS Speed Fillers (Sync parameters set directly via SFV Vacuum Filler touchscreen) |
| Total Electrical Input Power | 2.1 kW (Dedicated Cutting Knife Drive Input: 1.1 kW) |
| Voltage Supply Network Grid | 3 / PE / N 50Hz 230 / 400V TN-C-S System (Standard AC: 230/400V ± 10%) |

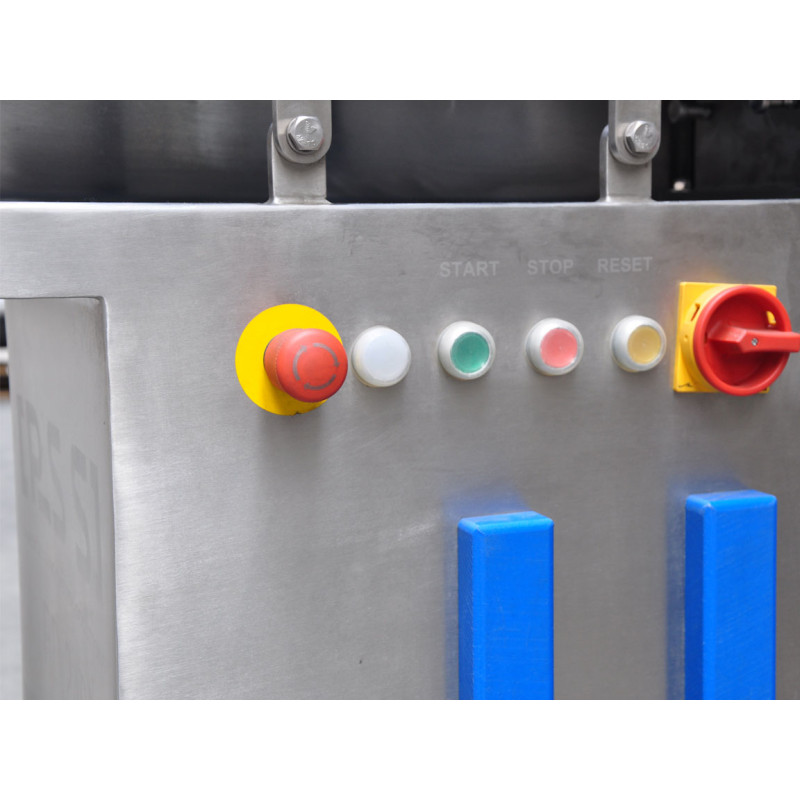

| Safety Control Circuit Loop | 230 / 24 V AC Safety Logic Unit |
| Machine Dimensions (L × W × H) | 1900 mm × 760 mm × 1500 mm |
| Equipment Structural Net Weight | 250 kg (~551 lbs.) Base Machine Frame |
| Modular Orientation Orientation | Configurable in Right-Handed or Left-Handed product flow formats |
* Note: Engineered with premium polished surface treatment layouts that actively repel fine protein adhesion. The seamless, crevice-free architecture drastically cuts down washdown labor loops to maintain perfect compliance with strict plant sanitation safety codes.
