Automatic Portioning Machine PNT-120 for Mincers

Brand: 1019
Location: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 30 X 25 X 25
Shipping Weight: 200 lbs
CM Product Code: 3381
Financing Available
Note: Shipping to be determined
Shaper Outlet for Meatbrick:




Shaper Outlet for Free-Flow:



Shaper Outlet for Cylinder:


Enter product diameter for cylinder outlet:

Other Accessories:

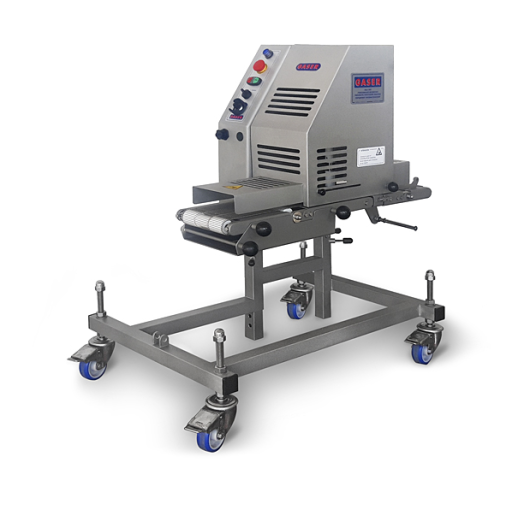

Gaser Automatic Portioning Machine with Leg and Outlet Belt - PNT-120 for Meat Mincer

TECHNICAL SPECIFICATIONS

  • Made in stainless steel.
  • With tractional inner belt with adjustable inclination and speed.
  • Outlet belt one meter long and adjustable height.
  • Portions are adjustable when changing the length or changing the nozzle.
  • Uses paper in rolls.
  • Perfect presentation of product.
  • Automatic cutting of paper and portion of meat.
  • Pneumatic operation (6kg / cm2).
  • Air consumption 10 liters per minute.
  • Electrical power: maximum 370 watts.
  • Voltage: 110V 60Hz 1Ph
  • Measurements: 470 x 360 x 600 mm.
  • Weight: 69kg.

Different Shaper or Connector Options:

These connectors can shape mincemeat into meatbricks, threads/free-flow or cylinders (with paper support)

CONNECTED TO MEAT MINCER FOR MEAT BRICK OUTLET :

The width of shaper option has to within standard measurements of 90mm, 100mm and 115mm.

CONNECTED TO MEAT MINCER FOR CYLINDER OUTLET :

The width of the shaper option is 115mm and no. of holes depends on the diameter of the cylinder(product) which has to be specified by customer.

CONNECTED TO MEAT MINCER FOR FREE-FLOW OUTLET :

For Free-flow outlet there will be free-flow shaper option which has standard measurements 115mm or 120mm width.

PAPER ROLLS:

The machine needs to work with paper Rolls, and which are of 108mm width and 120mm width.

For meat brick output paper size must be bigger than width of meat brick output.

For free flow output paper size can be smaller than width of free-flow output.

Note: 24 Rolls per Box

Shipping Weight: 51 lbs

Shipping Dimension: 20 x 11 x 16 inches
