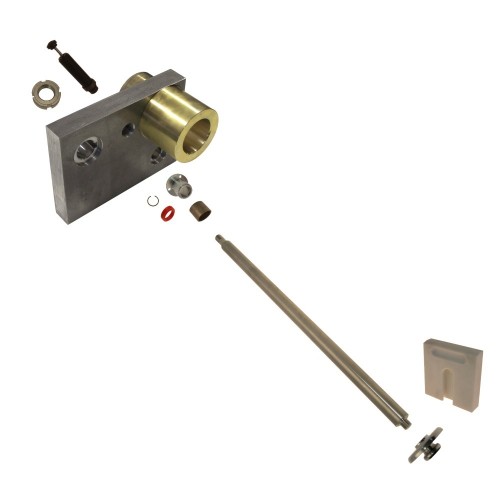

Plunger Shaft Complete

Plunger Shaft Complete
Plunger Shaft Complete
  Pos. No.  Part No.  Description  Add. Info  Required ... Read More

  • Stock: On Order
  • Brand: Ruhle
  • Type: F41413-1et

Available Options

Request Quote
Block Exploded View Ruhle SR2 No. 74 and Higher
Quickview
Block Exploded View Ruhle SR2 No. 74 and Higher
View Details Request Quotes
Connecting Rod Exploded View - SR2 Turbo No. 74 and higher
Quickview
Connecting Rod Exploded View - SR2 Turbo No. 74 and higher
View Details Request Quotes
Coupling Complete
Quickview
Coupling Complete
View Details Request Quotes
Drive Complete - SR2 Turbo No. 74 and higher - Forward feed
Quickview
Drive Complete - SR2 Turbo No. 74 and higher - Forward feed
View Details Request Quotes
Forward Feed Adjustment
Quickview
Forward Feed Adjustment
View Details Request Quotes
Forward Feed Assembly
Quickview
Forward Feed Assembly
View Details Request Quotes
Forward Feed Guiding Complete
Quickview
Forward Feed Guiding Complete
View Details Request Quotes
Gear motor with break Exploded View SR2 Dicer No. 74 and Higher
Quickview
Gear motor with break Exploded View SR2 Dicer No. 74 and Higher
View Details Request Quotes
  Pos. No.  Part No.  Description  Add. Info  Required
1 F26937 Grooved nut M 26 x 1.5 x Ø 45 x 10 1
2 F26946 Miniature shock absorber SC 300 HMD-3 1
3 F41414 Plate SR 2 Turbo 1
4 F26928 Flange Ø 80 x 47 1
5 F22940 Slide bushing DIN1850 Ø 30 x Ø 35 x 30 1
6 F27134 Scraper 30 x 38 x 4/7 Seal. 1
7 F26930 Snap ring B35 x 2.5 1
8 F27101 Shaft Ø 30 x 695 1
9 F21654 Housing Ø 80 x 26 M 16 x 1,5 1
10 F26931 Plunger SR2/T-SR3 119 x 119 x 25 1
