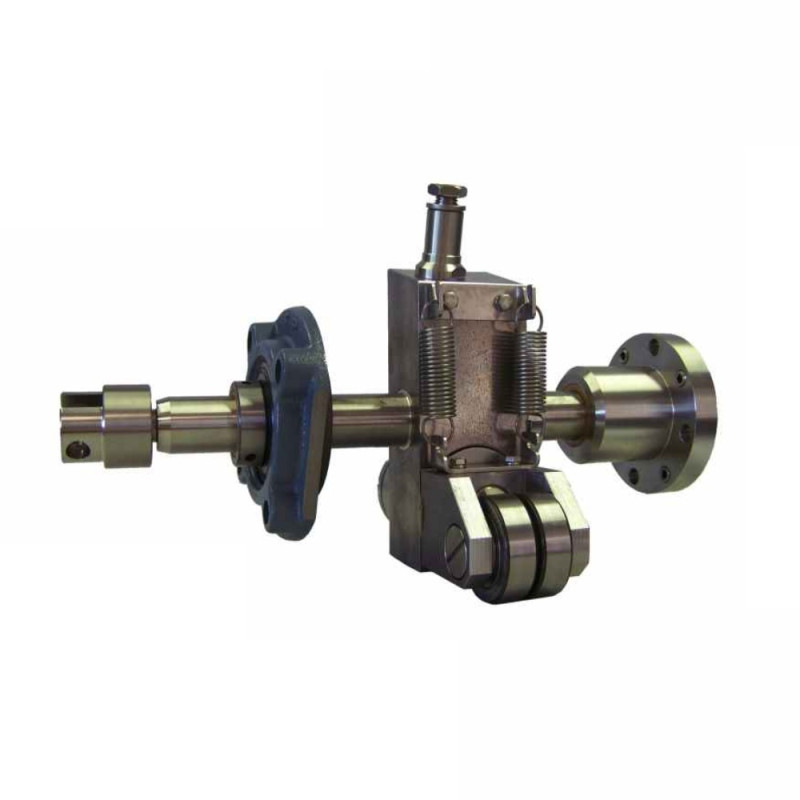

Block Exploded View for Ruhle SR2 Dicer No. 74 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F447114 | Block | SR 2 Turbo | 1 |
 |
2 | F41387 | Fork | SR 2 / SR 2 T / SR 3 | 1 |
 |
3 | F27442 | Sealing ring | Ø 54 x Ø 64 x 5,5 | 2 |
 |
4 | F23387 | Axial-Rillenkugellager | DIN711 51207 | 2 |
 |
5 | F27455 | Disc | Ø 35 x Ø 75 x 3 | 1 |
 |
6 | F26854 | Shaft | Ø 45 x 414 | 1 |
 |
7 | F27456 | Grooved nut | DIN1804 M 45 x 1.5 x Ø 70 x 12 | 1 |
 |
8 | F26469 | Needle bearing | DIN617 - RNA4907 | 2 |
 |
9 | F27448 | Roller | 305705 C-2Z | 2 |
 |
10 | F26862 | Disc | Ø 25,2 x Ø 35 x 3 | 3 |
 |
11 | F26860 | Shaft | Ø 30 x 95 | 1 |
 |
12 | F27406 | Bracket | 40 x 40 x 25 x 2,5 | 1 |
 |
13 | F26857 | Bracket | 69 x 22,5 x 22 x 2,5 | 1 |
 |
14 | F20685 | Hexagonal Bolt | DIN933 M 6 x 10 | 6 |
 |
15 | F28836 | Spring | d 2 x Ø 22 x 70,8 | 2 |
