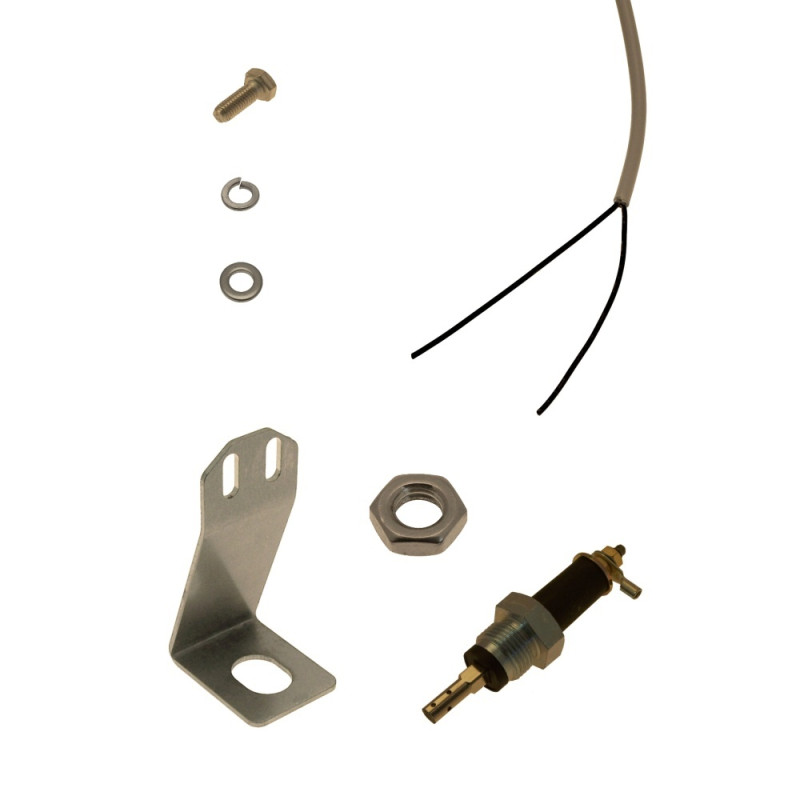

Sensor Unit Exploded View 3 SR2 No. 249 and Higher

Type: 103809
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 850

Note: Shipping to be Determined.

* Sensor Unit Exploded View 3 SR2-Turbo No. 249 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Sensor Unit Exploded View 3 SR2 No. 249 and Higher

Type: 103809
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 850

Note: Shipping to be Determined.

* Sensor Unit Exploded View 3 SR2-Turbo No. 249 and higher:
--F20572 Hexagonal nut
--F20417 Hexagonal bolt
-- F24031 Spring lock washer
--F20258 Washer
--F27138 Bracket
-- F23523 Kabel
--F20739 Power supply

Sensor Unit Exploded View 3 for Ruhle SR2 No. 249 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F20572	Hexagonal nut	DIN439 M 18 x 1,5	1
2	F20417	Hexagonal bolt	DIN933 M 6 x 16	1
3	F24031	Spring lock washer	DIN127 B 6	1
4	F20258	Washer	DIN125 A 6,4	1
5	F27138	Bracket	98 x 54 x 40 x 2,5	1
6	F23523	Cable	ÖZ-O 2 x 1.0 mm²	3150 mm
7	F20739	Power supply	RK 659 T	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Sensor Unit Exploded View 3 for Ruhle SR2 No. 249 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F20572	Hexagonal nut	DIN439 M 18 x 1,5	1
2	F20417	Hexagonal bolt	DIN933 M 6 x 16	1
3	F24031	Spring lock washer	DIN127 B 6	1
4	F20258	Washer	DIN125 A 6,4	1
5	F27138	Bracket	98 x 54 x 40 x 2,5	1
6	F23523	Cable	ÖZ-O 2 x 1.0 mm²	3150 mm
7	F20739	Power supply	RK 659 T	1
