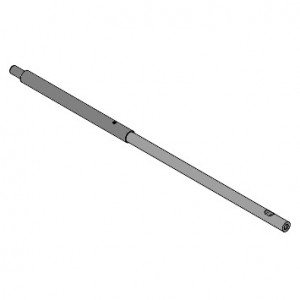

Shaft Exploded View
Type: F450733
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2144
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2144
Pos. No.  |
Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | F250305 | Shaft | Ø 30 x 380 | 1 |
 |
2 | F250325 | Shaft | Ø 25 x 565,5 | 1 |
 |
3 | F20690 | Tensioning pin | DIN1481 Ø 5 x 10 | 1 |
