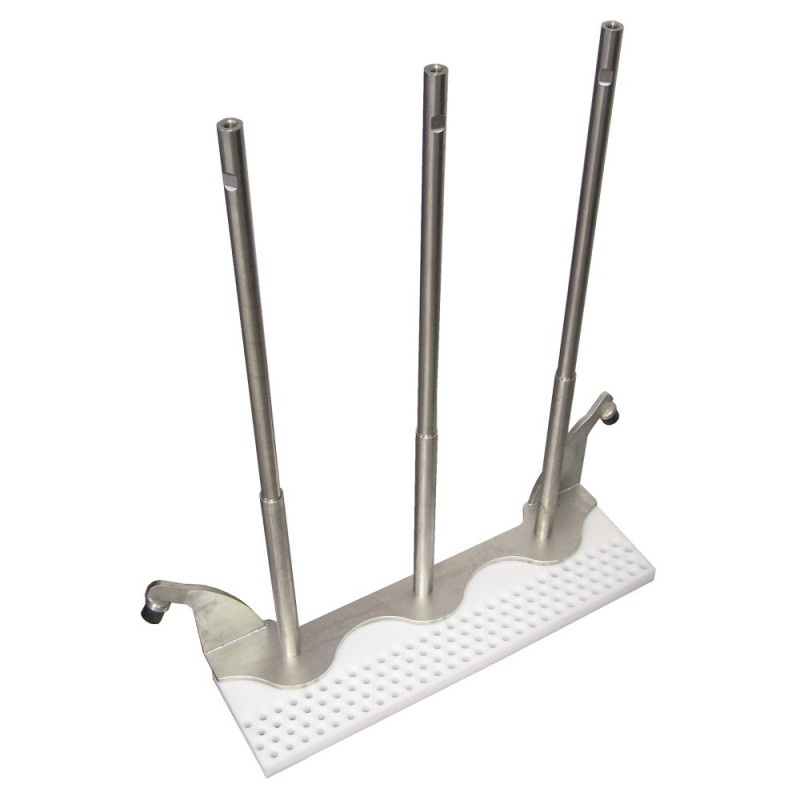

Suppressor Complete
| Pos. No. | Part No. | Description | Add. Info | Required | ||
|---|---|---|---|---|---|---|
 |
1 | F250324 | Plate | 680 x 180 x 30 | 1 | |
 |
2 | F240180 | Flange | M 20 x 1,5 x Ø 55 x 23 | 3 | |
 |
3 | F20453 | Countersunk bolt | DIN7991 M 6 x 20 | 6 | |
 |
4 | F450308 | Housing | IR 112 | 1 | |
 |
5 | F450733 | Shaft | IR 112 | 3 | |
 |
6 | F250307 | Ring | Ø 25,5 x Ø 38 x 10 | 3 | |
 |
7 | F253281 | Pressure spring | d3.5 x De37.5 x 590 | 3 | |
 |
8 | F250327 | Ring | Ø 25,5 x Ø 55 x 22 | 3 | |
 |
9 | F250328 | Bolt | Ø 45 x 35 | 3 | |
 |
10 | F241221 | Housing | Ø 8,3 x Ø 35 x 12 | 2 | |
 |
11 | F240194 | Rubber pad | Ø 30 x 44 | 2 |
