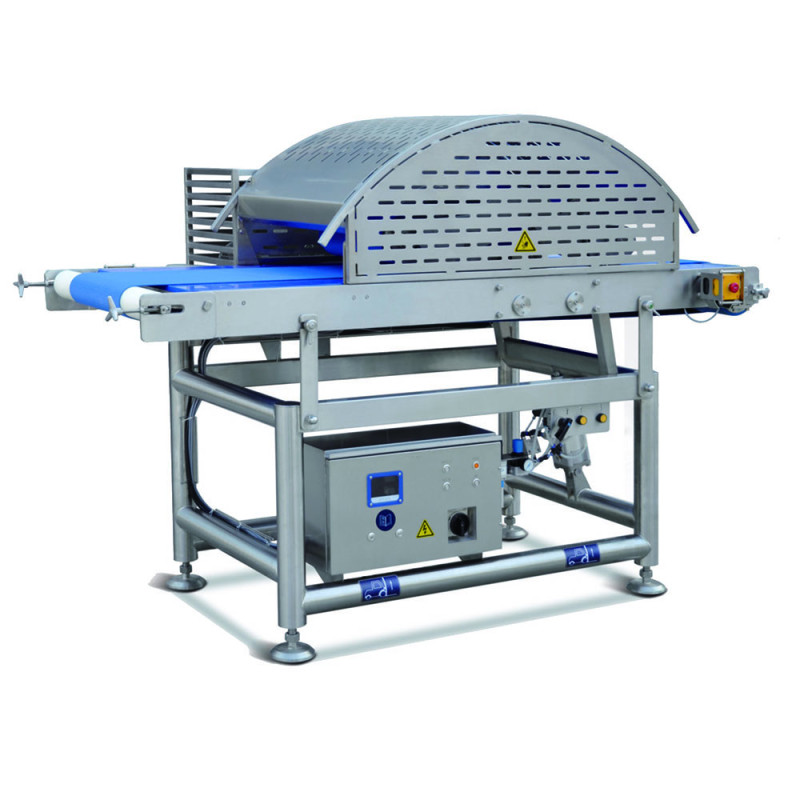

Tough Red Meat or Vegetable Horizontal Slicer
The heavy-duty industrial Tough Meat Slicer is engineered to deliver high-capacity portioning efficiency for products that cause standard slicers to fail. If your processing facility, industrial kitchen, or packing plant needs a high-output horizontal meat slicer, a specialized vegetable slicer, or a heavy-duty continuous red meat slicer in Ontario, Canada, this high-tonnage platform provides an exceptional operational advantage. Purpose-built as a top-performing commercial slicer and industrial steak slicer, this machine handles challenging raw materials—such as tough beef cuts containing dense tendons or cartilage, block-shaped root vegetables, and cooked proteins. Capable of handling tempered products down to ≥-2°C, it also serves as a reliable solution for processors searching for robust frozen meat slicers in Ontario, Canada. Its modular conveyor layout integrates seamlessly into automatic continuous production lines to maximize product yield and streamline daily plant workflows.
- Oversized Slicing Capacity Chamber: Features an extra-wide cutting window measuring **380 mm width × 120 mm height** to accept large raw muscle groups, oversized primal slabs, and dense vegetable blocks.
- Advanced Dual Floating Conveyor: Employs an intelligent, pneumatically driven double floating compaction belt network that adjusts automatically to different entry thicknesses, securing a firm grip without crushing delicate fibers.
- Sanitary Internal Drum Motor: The heavy-duty conveyor assembly is powered directly by a sealed, internal drum motor. This design eliminates exposed pulleys and grease points to maximize workplace safety and simplify cleanup cycles.
- Total FDA and CE Material Alignment: Built strictly with food-grade 304 stainless steel and non-metallic sub-assemblies conforming fully with FDA and CE hygiene requirements.
- Rigid Operator Safety Controls: Outfitted with integrated electronic safety interlock proximity switches on the protective housing cover to ensure immediate motor shutoff if the casing is opened.
| Industrial Production Capacity | Up to 1000 kg / hour Continuous Output Mass |
| Raw Material Temperature Range | ≥ -2°C (Excellent for fresh, chilled, or tempered proteins) |
| Conveyor Belt Width Track | 380 mm Sizing Field |
| Variable Conveyor Line Speed | 3 to 15 meters / minute Variable Speed Drive |
| Adjustable Slice Thickness Limits | ≥ 4 mm Micro-Slice Minimum to Multi-Layer Scales |
| Input & Output Line Elevation Height | 1000 ± 50 mm (Standard height optimized for line pairing) |
| Electrical Connection Grid Target | 480V / 220V • 60 Hz • 3-Phase (Other industrial voltage configurations available) |
| Overall Dimensions (L × W × H) | 2180 × 1155 × 1480 mm |
 |
Multi-Blade Slicing Structure: Features a proprietary multi-blade alignment configuration designed to keep slicing forces perfectly balanced across the entire width of the product. This design minimizes slicing error and ensures flat, highly uniform cuts. |
 |
Pneumatic Double-Floating Compaction System: Employs an intelligent pneumatic compression framework that automatically expands or contracts based on incoming material density and thickness, preventing slice slipping without bruising the product. |
 |
Premium German Festo Pneumatics: The air actuation and tracking circuits rely completely on high-end German-manufactured Festo pneumatic systems, guaranteeing exceptional industrial pressure reliability and simplified maintenance. |
 |
Toolless Quick-Release Belt Lines: The primary conveyor tracking bands feature an easy-to-disassemble configuration. Operators can slide out the belts within seconds without tools to execute comprehensive sanitation loops. Full CE approval certified. |
