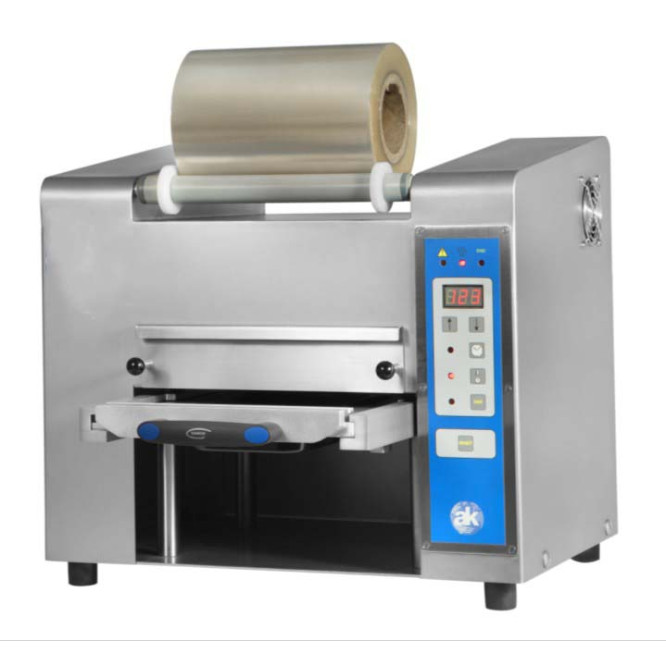

Semi-Automatic Tray Sealer TS-200

Description

• Totally manufactured in AISI 304 stainless steel.
• Die set in anodized aluminum.
• Semi-automatic tray sealer.
• Automatic sealing system.
• Automatic film power supply.
• Acoustic and luminous signal from the end of the cycle.
• Cut the film by the back side.
• Digital panel with sealing temperature regulator (0°-230° C).
• Compact and robust model.
• Easy mold change, molds are interchangeable in a few seconds.
• Fast heating of the selected temperature.
• It allows to work with different types of tray materials, PP, PET, ALUMINIUM…
• Voltage: 220 V/ 1ph/ 60 Hz.
• Maximum sealing surface: 280×192 mm.
• Film roll width: 220 mm.
• Power: 900 W.

Standard molds

• Multi-mold for 3 different sizes: 260×192 mm; 224×192 mm; 137×192 mm.
• 1/8 GN (168×130 mm).
• 1/4 GN (160×260 mm).
• Any type and shape of die set can be manufactured according to the customer trays.
