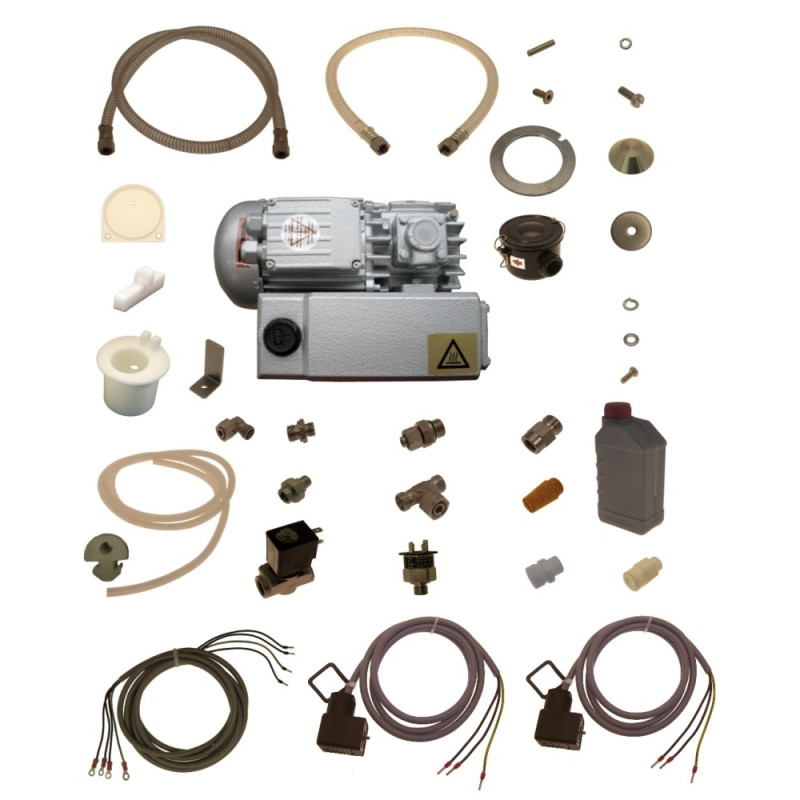

Vacuum System Assembly for Ruhle MGR400 No. 8 and Higher
Pos No. | Part No. | Description | Add Info | Required | |
1 | F25931 | Air Filter Housing | Ø 98x86 Filter C 75 | 1 | |
2 | F255709 | Screw Joint | 1/2" | 1 | |
3 | 105537 | Screw Joint | EGKO-12LR1.2WD | 2 | |
4 | 105539 | T-Piece | XETKO-12L | 2 | |
5 | 105540 | Screw joint | MAV 12 LR OMD71 | 1 | |
6 | F27520 | Silencer | 1/2 Zoll | 1 | |
7 | 105561 | Hose | MKR 300/600 | 1 | |
8 | 107966 | Hose | MGR 400 / 900 | 1 | |
9 | 107993 | Container | Ø 120 x 130,5 | 1 | |
10 | 107349 | Housing | 90 x 37,5 x 18 | 1 | |
11 | 107352 | Flap | 90 x 90 x 6 | 1 | |
12 | 107356 | Pin | Ø 6 x 30 | 1 | |
13 | F20598 | Countersunk Bolt | DIN7991 M 5 x 12 | 2 | |
14 | F148969 | Seal | Profil 763 | 25.5 cm | |
15 | 107353 | Weight | Ø 40 x 10 | 1 | |
16 | F25984 | Cylinder head screw | DIN84 M 5 x 12 | 1 | |
17 | 107354 | Washer | M100 x 2 x Ø 145 x 6 | 1 | |
18 | 107450 | Double Nipple | G1/2 - G3/4 | 1 | |
19 | 107384 | Double Nipple | G1/2 - G3/4 | 1 | |
20 | 108142 | Holder | 63,5 x 46 x 2,5 | 1 | |
21 | F20258 | Washer | DIN125 A 6,4 | 1 | |
22 | F24031 | Spring lock washer | DIN127 B 6 | 1 | |
23 | 100802 | Vacuum oil | MGR 900 | 1 | |
24 | F20685 | Hexgonal Bolt | DIN933 M 6 x 10 | 4 | |
25 | F22116 | Disc | Ø 6,5 x Ø 30 x 3 | 4 | |
26 | F21045 | Washer | DIN125 A 5,3 | 1 | |
27 | 105691 | Double nipple | GE12LR1/271X | 2 | |
28 | 105538 | Elbow connector | XEWKO-12L | 1 | |
29 | F20417 | Hexagonal Bolt | DIN933 M 6 x 16 | 1 | |
30 | 106224 | Vacuum pump | KC 0016 E | 1 | |
31 | 108299 | Cable for vacuum pump | MGR 400/900/1500 | 1 | |
32 | F25937 | 2/2 way valve 230V | AWS-218/10 MG12E | 2 | |
33 | F20914 | Pressure transmitter | 8472.xx.5717.05.19.61.01 | 1 | |
34 | 108349 | Cable for vacuum valve | MGR 400/900/1500 | 1 | |
35 | 108350 | Cable for filling valve | MGR 400/900 | 1 |
