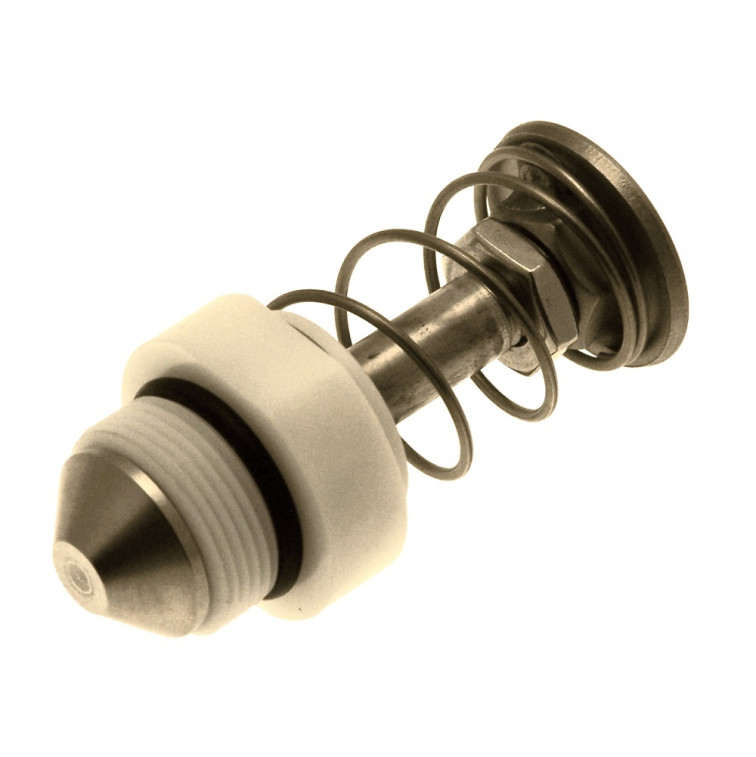

Valve Unit Exploded View Ruhle PR10 F41253

Type: F41253
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1933
* Valve Unit Exploded View PR 10:

Valve Unit Exploded View for Ruhle PR10

  Pos No. Part No. Description Add Info Required
F26551 1 F26551 Nut Ø 35 x 27 1
F20104 2 F20104 bolt Ø 23 x 74 1
F20129 3 F20129 Radial shaft seal Ø 10 x Ø 18 x 6 1
F20136 4 F20136 Slide bushing DIN1850 Ø 10 x Ø 16 x 10 1
F20138 5 F20138 O-ring Ø 20 x 3 1
F22560 6 F22560 Pressure spring d1.5 x De28 x 50 1
F20047 7 F20047 Hexagonal nut DIN439 M 10 1
F41543 8 F41543 Switching head PR 8 - 10 1
