Automatic Skewer Machine SK-5000

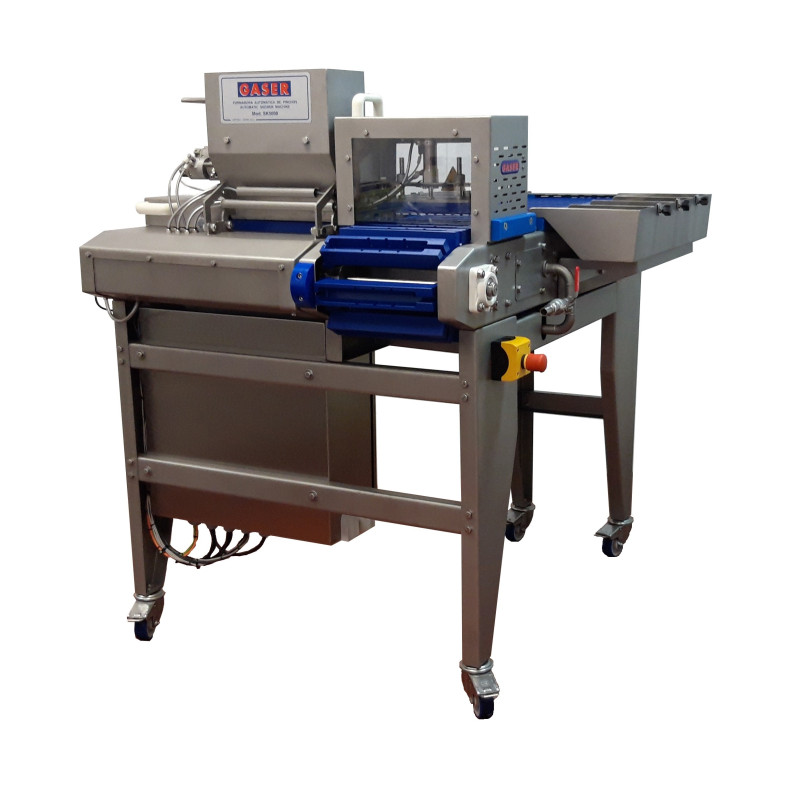

Gaser SK-5000 Automatic Skewer Machine

Specifications:

• Completely autonomous machine.
• Made of stainless steel.
• Ideal for 1 ingredient
• Can produces up to 1500 units per hour – 25 units per minute.
• The machine is fed by the workers, therefore the output speed depends on the speed they work at
• Standard mold can fit products up to 220mm in length

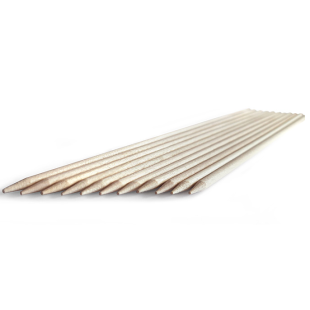

• Can use skewers from 120-330mm long with a diameter of 3.8mm
• Standard point tip skewers are recommended for minimal friction
• Adjustable skewer length but only for straight skewers (not gun type)

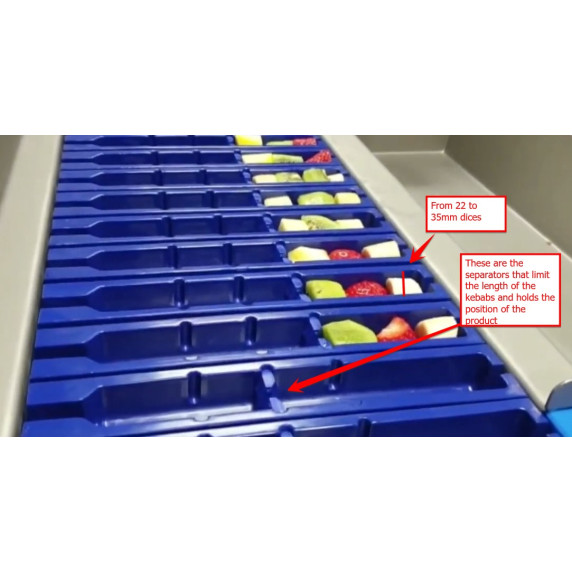

• Separators are used to limit the length of product in the mold chamber, as well as pushing the product together as the skewer enters.
• The maximum dice/portion that can be used is a 30x30x30mm, but the machine will be able to adjust if it is a little bit bigger such as 2-3 millimeters more
• The average market measurements are 22- and 35-mm meat dices.
• Automatic cleaning

Technical Characteristics:

• Pneumatic operation at 6 bars (kg/cm²)
• Air consumption 20 liters / minute
• Electrical power: 400W
• Electric current 230V, 50/60Hz
• Dimensions: 1305 × 1130 × 1320 mm
• Net weight: 120 kg
