Higher-Output Brine Injection with Pressure Control

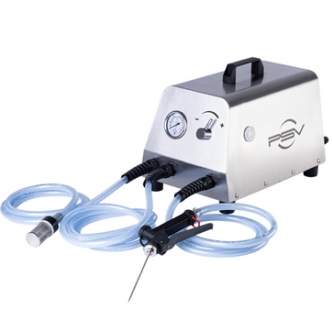

PSV Brine Pump Injector PM4

The PSV PM4 is a professional brine pump injector designed for delicatessens, butcher shops, and meat processors that need higher output, adjustable pressure, and more consistent control during curing and salting applications.

Capacity: 1620 liters per hour

Pressure Control: Variable pressure from 1.5 to 4.5 bar with integrated pressure gauge

Construction: Stainless steel monobloc case with 316L stainless steel pump head

Best Fit: Higher-volume production, regular brining, and customers needing pressure adjustment

Why Choose the PSV PM4?

Higher Production Capacity

The PM4 provides a theoretical output of 1620 liters per hour, making it the better choice for customers who brine larger batches or use their brine pump more frequently.

Adjustable Pressure with Gauge

The PM4 includes variable pressure control and an integrated manometer, allowing operators to adjust and repeat pressure settings for different products and production requirements.

Built for Professional Production

With a 316L stainless steel pump head, stainless steel monobloc case, noise-reduction plates, and ventilation system, the PM4 is designed for more demanding production environments.

Best Fit Applications

Delicatessens and butcher shops producing cured meats or hams on a regular basis.
Meat processors that require higher output than the PM3.
Facilities that process different products and need adjustable injection pressure.
Customers who want repeatable pressure settings using an integrated pressure gauge.
Growing operations that need a more production-oriented brine pump.

Best sales positioning: Choose the PM4 when the customer needs more speed, more control, and more consistency than the PM3.

PM4 Technical Specifications

Specification	PM4
Capacity	1620 liters per hour
Pressure	Variable pressure from 1.5 to 4.5 bar
Pressure Control	Integrated pressure regulator with pressure gauge / manometer
Power	0.56 kW
Voltage	380V / 3 phase / 50 Hz manufacturer specification. Single-phase motor option available. Please confirm site electrical requirements before ordering.
Dimensions	543 × 280 × 297 mm
Weight	17 kg
Construction	Stainless steel monobloc case with 316L stainless steel pump head
Pump Type	Self-priming pump with constant output
Start / Stop	Start and stop activated by 24V stainless steel latching button
Noise Reduction	Sound-absorbing plates for reduced operating noise
Ventilation	Integrated ventilation system
Standard Setup	Three-phase motor

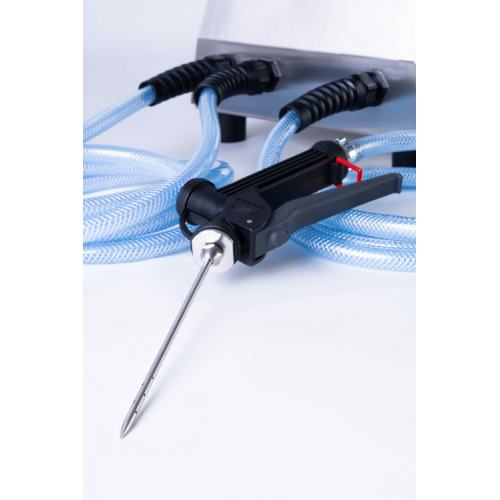

Needle Options	1 needle standard. Optional 3- or 5-needle multiprobe available.
Optional Motor	Single-phase motor option available

PM4 vs PM3 — When Is the PM4 the Better Choice?

The PM4 is the better choice when the customer needs more production capacity, adjustable pressure, and greater control over the brining process. Compared with the PM3, the PM4 is designed for customers who brine more frequently, process larger batches, or work with different products that may require different pressure settings.

Choose the PM4 for higher-volume or regular production.
Choose the PM4 when adjustable pressure is important.
Choose the PM4 when the operator needs a pressure gauge for repeatable settings.
Choose the PM4 when the customer wants a more production-focused brine pump.
Choose the PM4 when the customer is growing and wants more capacity than the PM3.

Need a compact and economical option? The PSV PM3 is the better choice for smaller batches, limited space, simple operation, and customers who do not require variable pressure control.

Need help choosing the right PSV brine pump?

Contact CM Machine Services for product selection, quote assistance, voltage confirmation, and optional needle configuration for your production needs.
