PSV Brine Pump Injector PM3

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Type: Perormance: 750 liters per hour
Location: FOB Brampton, ON Canada (A)
U/M: Each
Stock: On Order
CM Product Code: 8795

Financing Available

Note: Shipping to be determined.

* PM3 Needle Options:

		1 Needle (standard)
		3 Needles
		5 Needles

* PM3 Voltage Options:
220V - 60Hz - 1Ph
120V-60Hz-1Ph

Professional Brine Injection for Compact Production

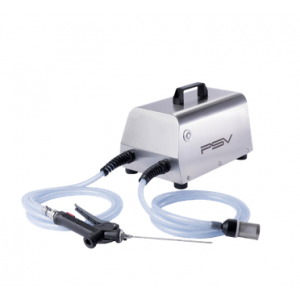

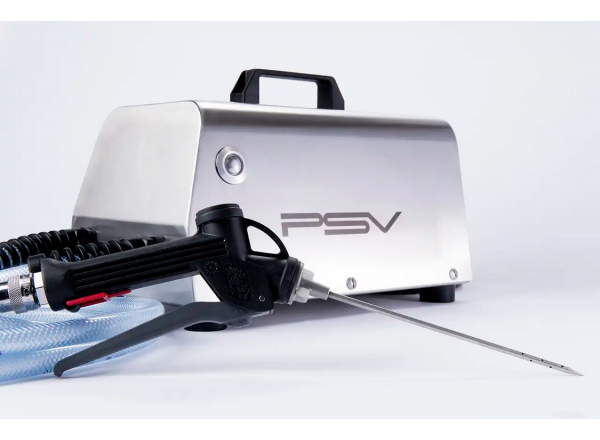

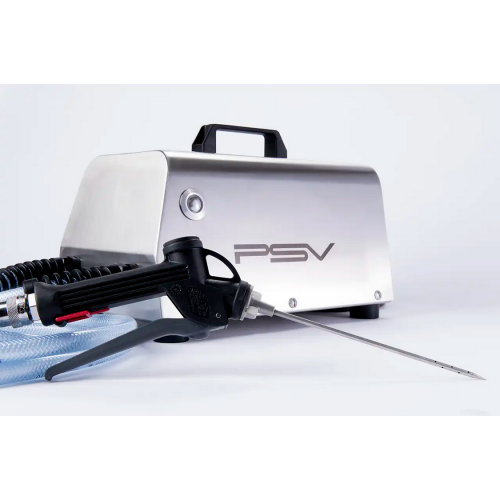

PSV Brine Pump Injector PM3

The PSV PM3 is a compact, easy-to-use brine pump injector designed for butcher shops, delicatessens, restaurants, and artisan meat processors that need reliable brine injection for small-batch curing and salting applications.

Capacity: 750 liters per hour

Power: 230V single phase

Construction: Full stainless steel body

Best Fit: Small-batch production, butcher shops, delicatessens, and artisan processors

Why Choose the PSV PM3?

Simple Operator Control

The PM3 starts and stops directly from the pistol handle, making it simple and comfortable for operators to use during small-batch production.

Compact and Portable

With its compact stainless steel body and transport handle, the PM3 is easy to move, easy to position, and well suited for facilities with limited space.

Economical Professional Solution

The PM3 is a practical choice for customers who need professional brining capability without the larger size, higher cost, or pressure-control features of the PM4.

Best Fit Applications

Small butcher shops producing cured meats, hams, and delicatessen products.
Artisan meat processors working with smaller batches.
Restaurants, specialty food producers, and delis with limited production space.
Facilities that prefer a compact 230V single-phase brine pump.
Customers looking for a simple, reliable, and economical brining solution.

Best sales positioning: Choose the PM3 when the customer wants a compact, economical, and easy-to-use brine pump for small-scale production.

PM3 Technical Specifications

Specification	PM3
Capacity	750 liters per hour
Pressure	2.5 bar
Power	0.25 kW
Voltage	230V / single phase / 50 Hz manufacturer specification. Please confirm site electrical requirements before ordering.

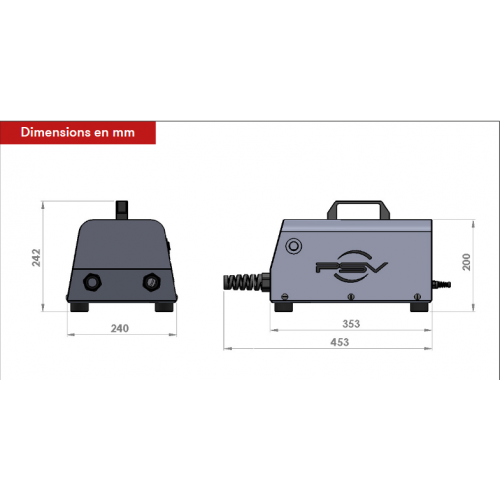

Dimensions	350 × 225 × 240 mm
Weight	11.5 kg
Construction	Full stainless steel body
Pump Type	Self-priming pump with constant output
Start / Stop	Activated by pistol handle
Standard Setup	Single-phase motor

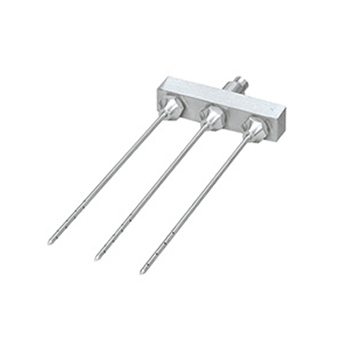

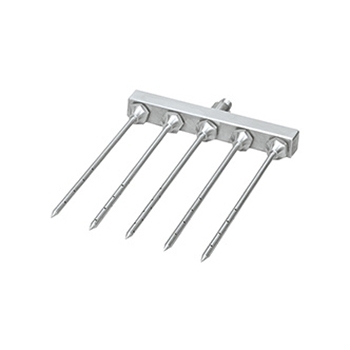

Needle Options	1 needle standard. Optional 3- or 5-needle multiprobe available.

PM3 vs PM4 — When Is the PM3 the Better Choice?

The PM3 is the right choice when the customer needs a compact and economical brine pump for smaller batches. It is easier to place in smaller production areas and is ideal for customers who do not require adjustable pressure control.

Choose the PM3 for small-batch or occasional brining.
Choose the PM3 when space is limited.
Choose the PM3 when 230V single-phase power is preferred.
Choose the PM3 when the customer wants simple operation and lower complexity.

Need more capacity or adjustable pressure? The PSV PM4 is the better choice for higher-volume production, pressure adjustment, and repeatable control across different products.

Need help choosing the right PSV brine pump?

Contact CM Machine Services for product selection, quote assistance, voltage confirmation, and optional needle configuration for your production needs.

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: [email protected]
