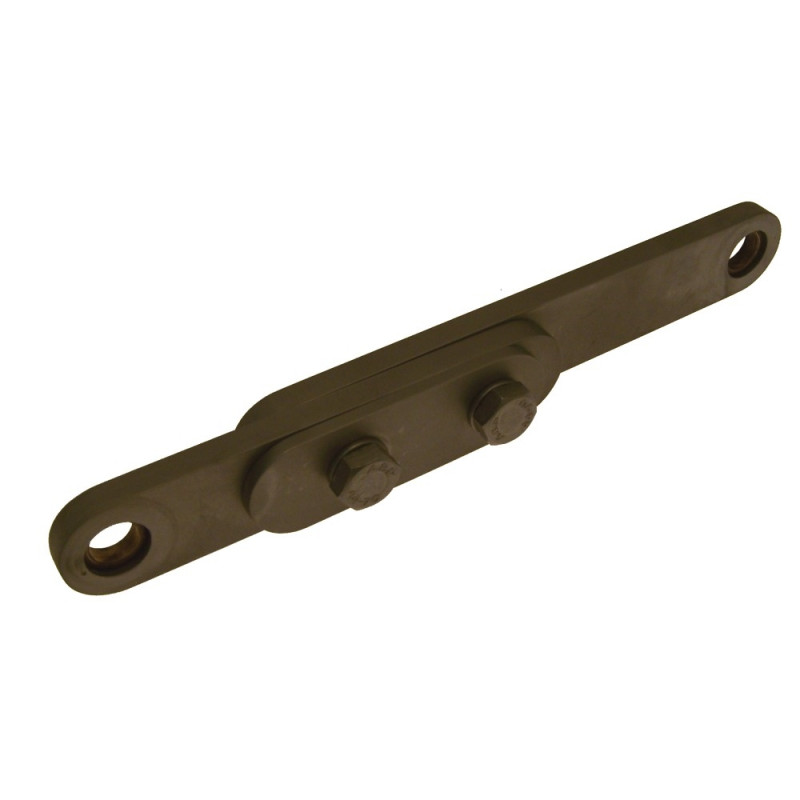

Connecting Rod Exploded View
| Pos. No. | Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | F250220 | Plate / Sheet | 222,5 x 35 x 10 | 1 |
 |
2 | F250222 | Plate / Sheet | 172,5 x 35 x 10 | 1 |
 |
3 | F23874 | Slide bushing | Ø 15 x Ø 20 x 9,8 | 2 |
 |
4 | F250223 | Plate / Sheet | 105 x 35 x 5 | 1 |
 |
5 | F20210 | Spring lock washer | DIN127 B 12 | 2 |
 |
6 | F21042 | Hexagonal bolt | DIN933 M12 x 30 | 2 |
