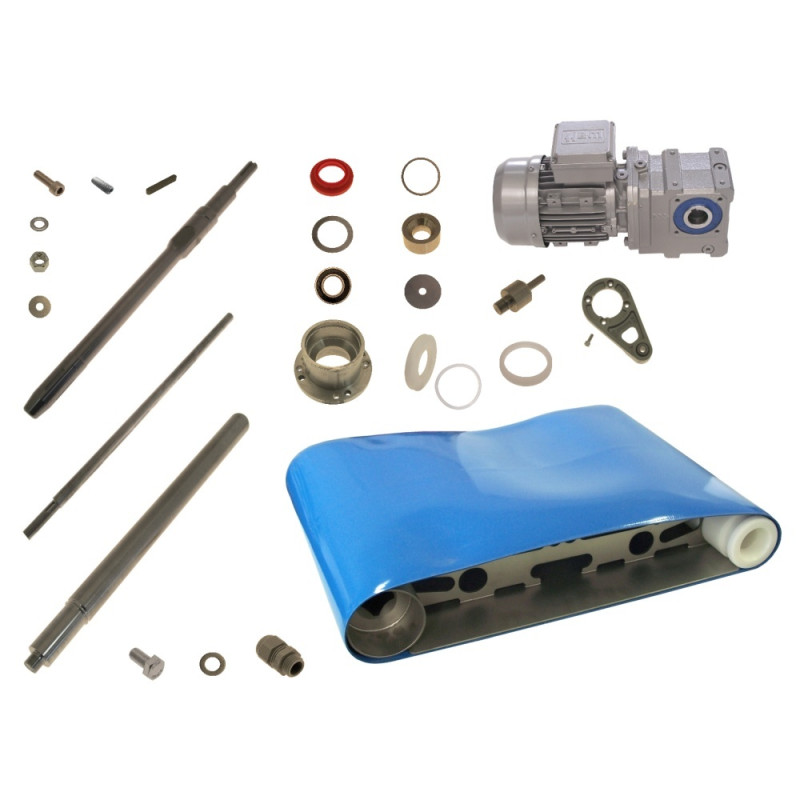

Drive Assembly Ruhle SR3 Dicer No. 35 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F28386 | Shaft | Ø 40 x 620 | 2 |
 |
2 | F28382 | Shaft | Ø 40 x 640 | 1 |
 |
3 | F26798 | Disc | Ø 20,5 x Ø 60 x 5 | 3 |
 |
4 | F20450 | Hexagonal nut | DIN934 M 20 x 1,5 | 3 |
 |
5 | F42033 | Conveyor belt | SR 3 | 1 |
 |
6 | F28212b | Housing | Ø 140 x 100 | 1 |
 |
7 | F20842 | Tapered ball bearing | DIN628 - 3209 2RS | 2 |
 |
8 | F28380 | Disc | Ø 70 x Ø 87,5 x 2 | 1 |
 |
9 | F28378 | Scraper | 55 x 88 x 18,5 | 1 |
 |
10 | F27693 | Washer | DIN125 A 10,5 | 4 |
 |
11 | F23173 | Cylinder head screw | DIN912 M10 x 40 | 4 |
 |
12 | F26833 | Threaded pin | DIN915 M 12 x 20 | 4 |
 |
13 | F28381 | Disc | Ø 45,5 x Ø 51,5 x 2 | 1 |
 |
14 | F28373 | Shaft | Ø 55 x 798,2 | 1 |
 |
15 | F28375 | Ring | Ø 30,2 x Ø 60 x 25 | 1 |
 |
16 | F22615 | Spring key | A 8 x 7 x 55 | 1 |
 |
17 | F28377 | Disc | Ø 9 x Ø 45 x 5 | 1 |
 |
18 | F20455 | Hexagonal bolt | DIN933 M 8 x 25 | 1 |
 |
19 | F28376 | Shaft | Ø 40 x 97 | 1 |
 |
20 | F20543 | Washer | DIN125 A 21 | 1 |
|
21 | F20450 | Hexagonal nut | DIN934 M 20 x 1,5 | 1 |
 |
22 | 106803 | Ring | SR 3 | 1 |
 |
23 | 106802 | Ring | Ø 88 x Ø 108 x 10 | 1 |
 |
24 | F27653 | Gear motor | SUA 454A 72K4 | 1 |
 |
25 | F20948 | Cable gland | M 16 x 1.5 | 1 |
